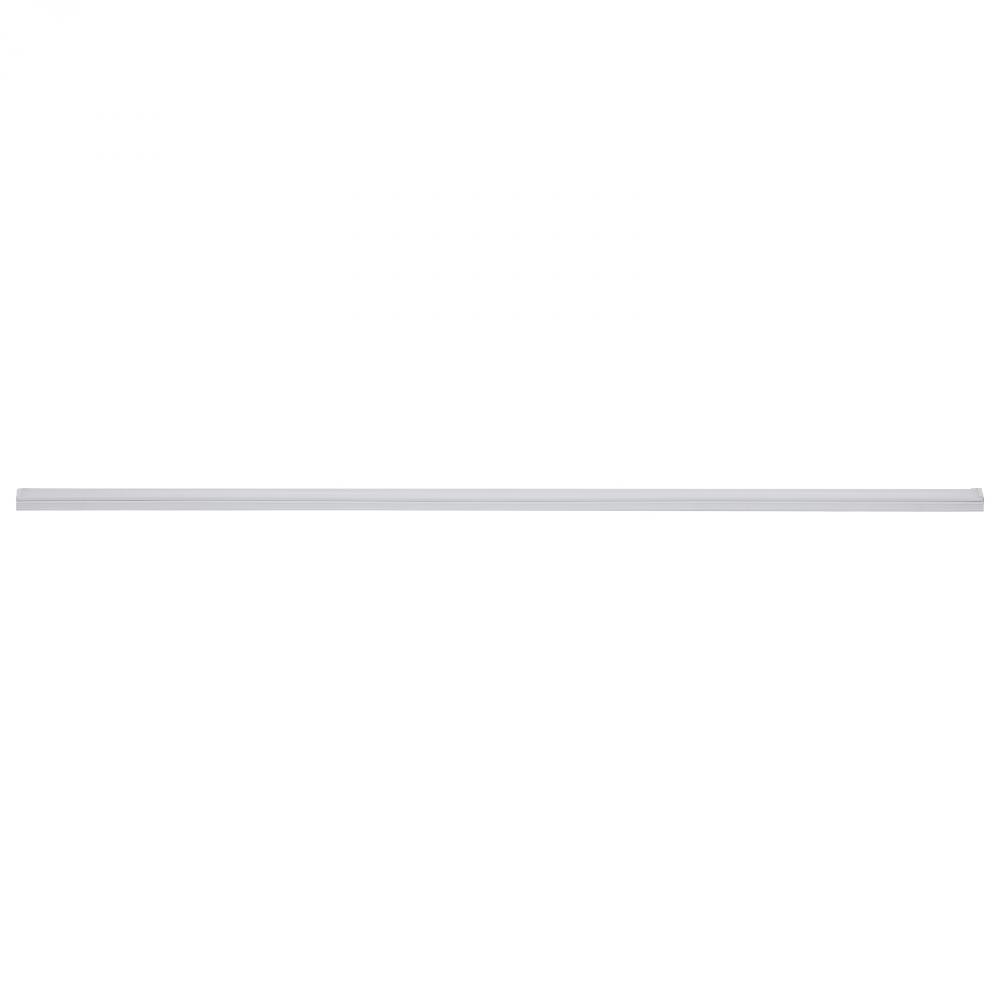

8 Foot; 78 Watt; LED Double Light Strip; 9000 Lumens; 4000K; 120-277 Volt (A66PH)
8 Foot; 78 Watt; LED Double Light Strip; 9000 Lumens; 4000K; 120-277 Volt
Product Specification
Item #
A66PH
Dimensions
Height: 2.48"
Width: 3.58"
Additional product details
Category
Undercabinet
Subcategory
LED Undercabinet Lights
Option
Energy Star
, LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Linear Strip
Sub Category
Wrap Fixture
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Cool White
Dimmable
Non-Dimmable
Each Height
2.52
Each Length
96.56999999999999
Each Width
3.74
Length
96.06
Lumens
9000L
Tariff Code
8539.52.0051
Warranty
5 Year Limited - Fixtures
Amps
0.650-0.282A
ANSI Base
Integrated
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
80
Each Cube
0.5266999999999999
Each Quantity
1
Efficacy
115.38 LPW
ES Category
Linear Strip
ES Unique ID
ESID-2473579
FCC Compliant
Yes
Feature 1
2kV Surge Protection
Feature 2
PIR Sensor Capable
Feature 3
120-277 Range Voltage
Feature 4
Damp location rated
Feature 5
5 Year Warranty
Feature 6
50000 Hours Rated
Feature 7
cETLus Safety Listed
Finish Family
White
Incandescent Equivalent
550W
Indoor Outdoor
Indoor
Installation Notes

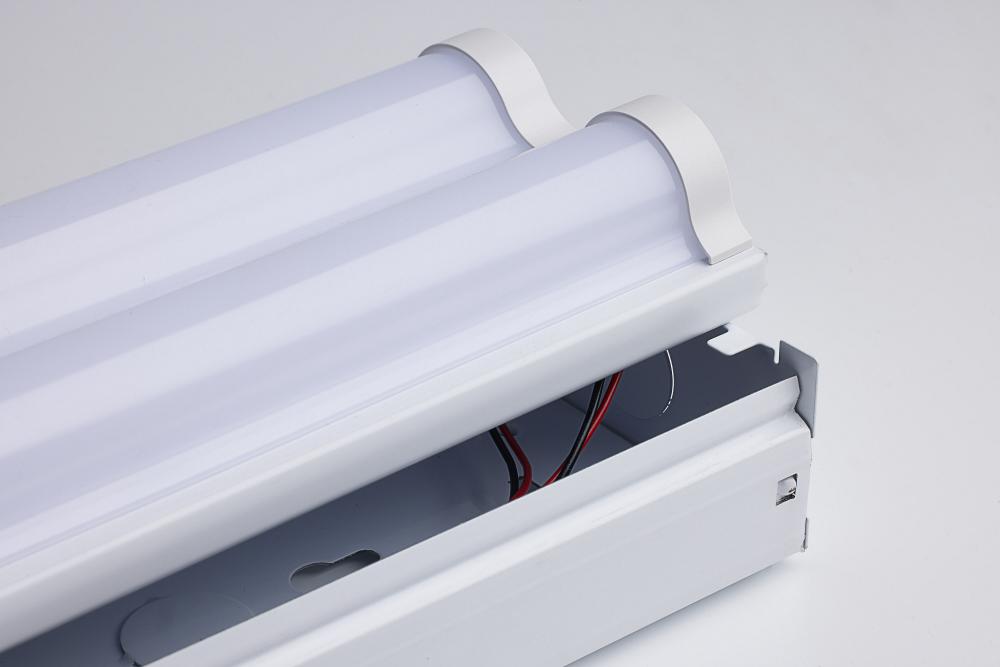

Fixture includes seven 1/2 inch wiring knockouts.
IOT Enabled
No
JA8 Compliant
No
Lens Finish
White
Lens Material
Polycarbonate (PC)
Long Description
Transition seamlessly to LED lighting with SATCO|NUVO's 65-1072 Double Strip Lights—a hassle-free upgrade harnessing the advantages of LED technology. Designed to match the form factor of traditional fluorescent fixtures, these lights are perfect for
Material
Steel
Mounting Procedure
Ceiling/Wall
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Power Factor
0.99
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Transition seamlessly to LED lighting with SATCO|NUVO's Double Strip Lights—a hassle-free upgrade harnessing the advantages of LED technology. Designed to match the form factor of traditional fluorescent fixtures, these lights are perfect for both re
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
8' LED DOUBLE LIGHT STRIP
Temperature (CCT)
4000K
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
8.710000000000001
