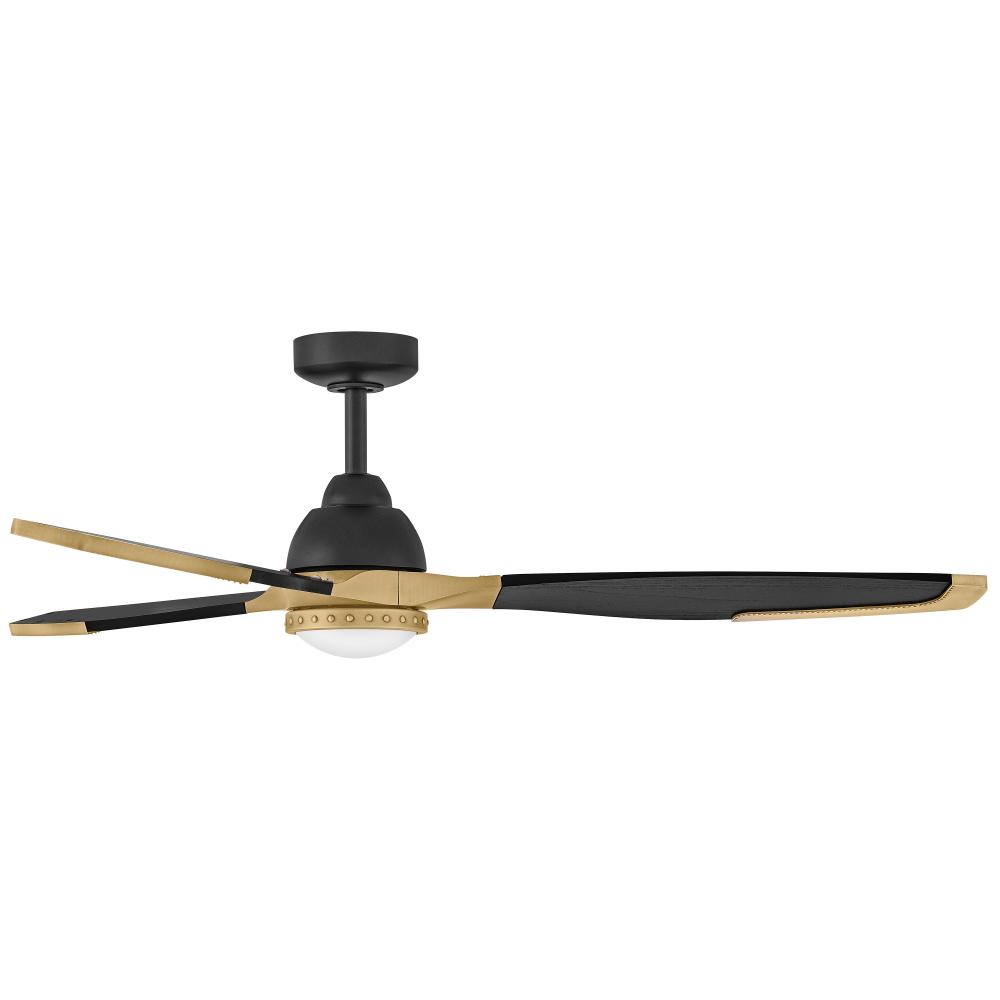

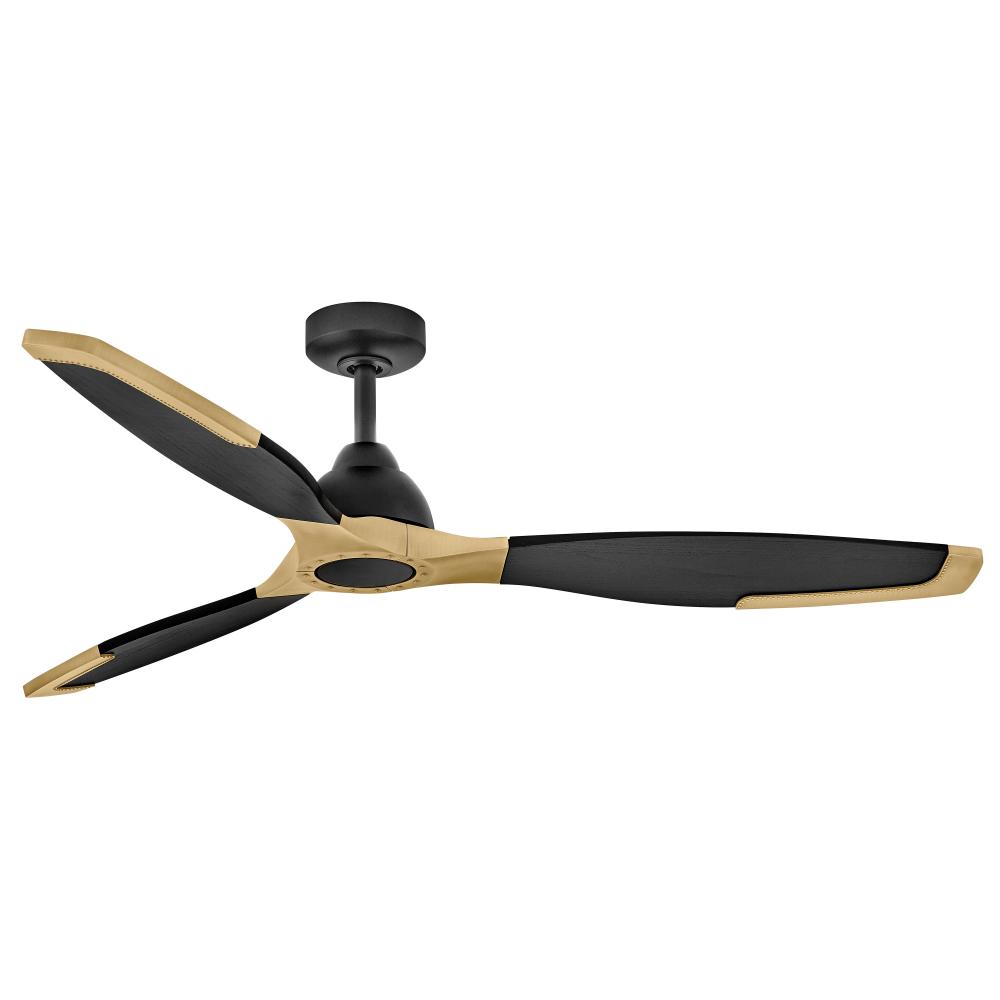

Aileron 60" LED Smart Fan (9X0DR)

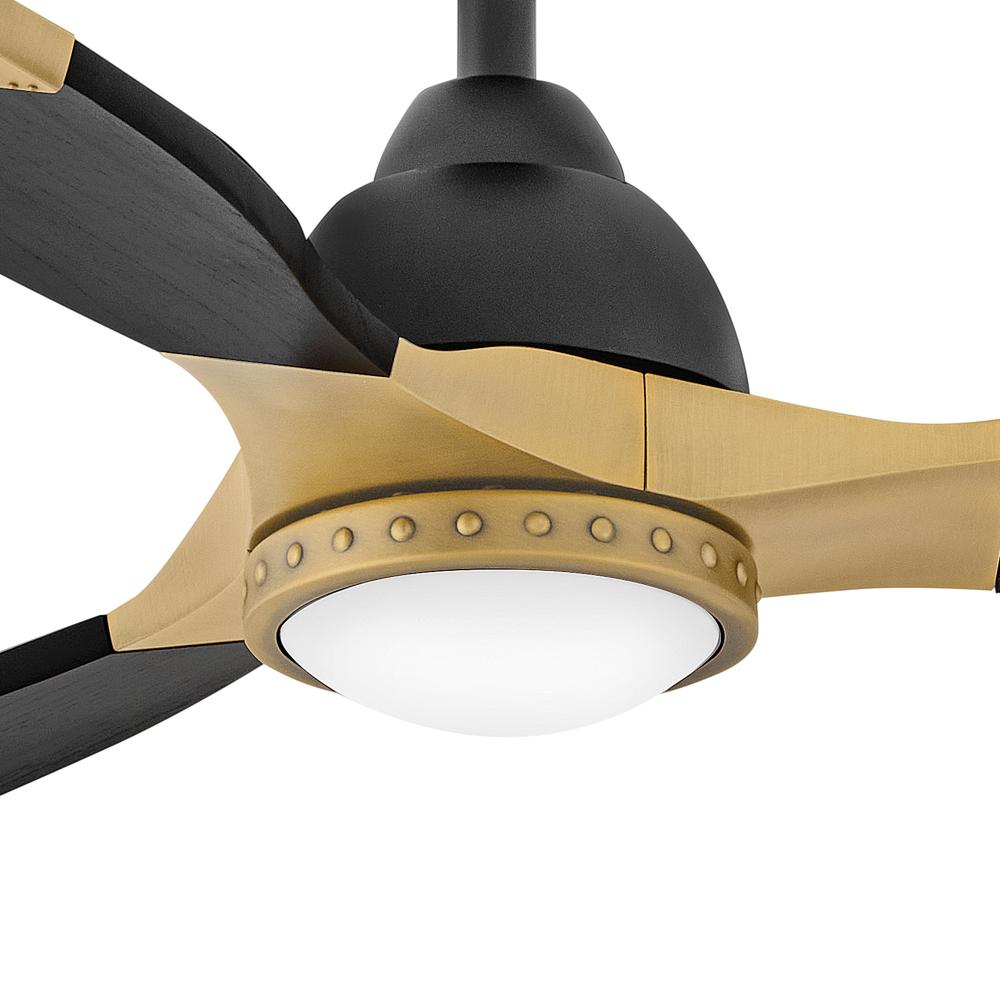

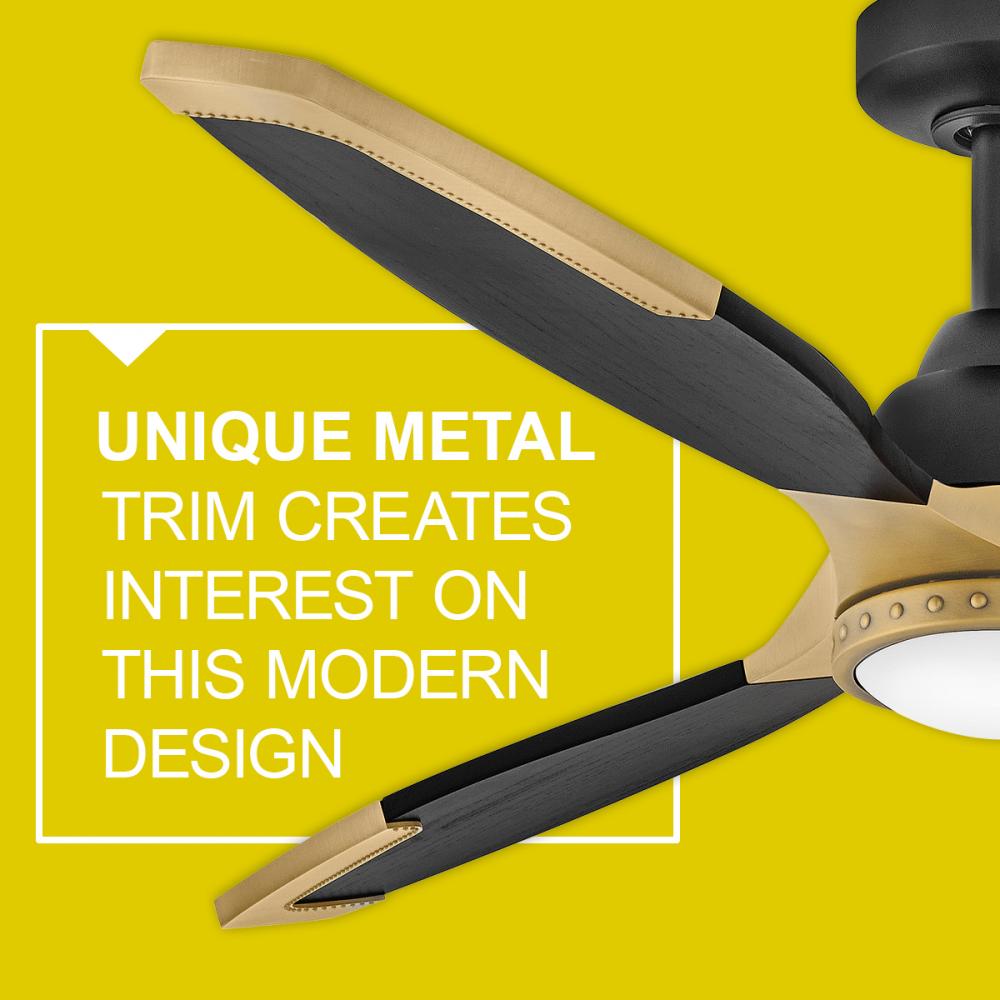

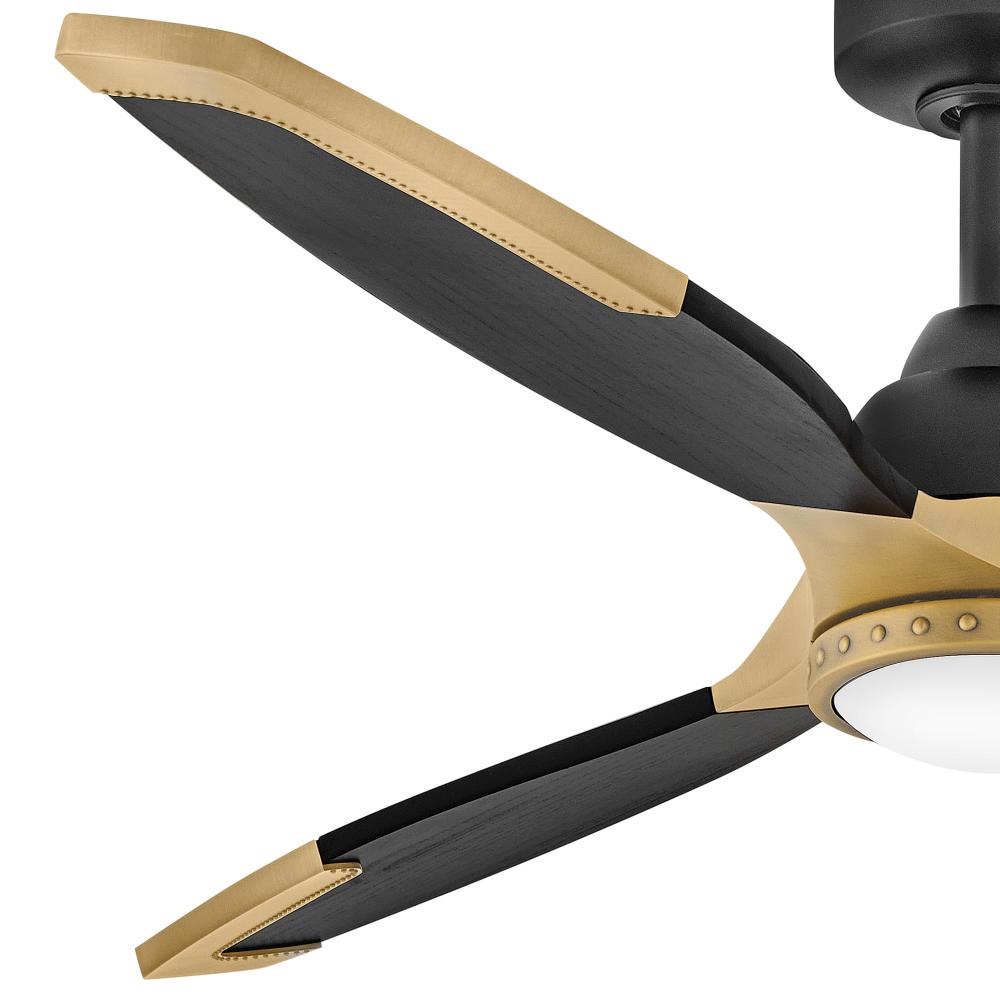

Accented by unique metal trim along the blades and central light, Aileron’s modern design brings added interest to your ceiling and a cool breeze to the surrounding space. Its versatile, damp-rated design is perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Downloads
Product Specification
Item #
9X0DR
Dimensions
Height: 15.00"
Width: 60.00"
Length: 60.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Industrial
Option
Damp Rated
Category
Fan
Finish
Matte Black
Style
Industrial
Family
Aileron
Glass
White Polycarbonate
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
5839
Amperage
0.52
Blade Finish
Matte Black
Blade Pitch
14
Blade Span
60
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
06/01/2024
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DCS-15NS
Motor Type
DC
Ship Carton Height
8.25
Ship Carton Length
28.75
Ship Carton Width
13.75
Ship Weight
28.6
Vendor Ship Method
Parcel
Weight
26.4
Accent Finish
Heritage Brass
Airflow Avg
4003
AMPS Avg
0.06
Avg Energy Use
25
Blade Material
Wood
Blade Options Available
No
Blade To Ceiling Height
12
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dual Mount
No
Efficiency Avg
163
Efficiency High
157
Energy Cost Avg
7
Energy Cost High
10
Energy Use High
37
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
6

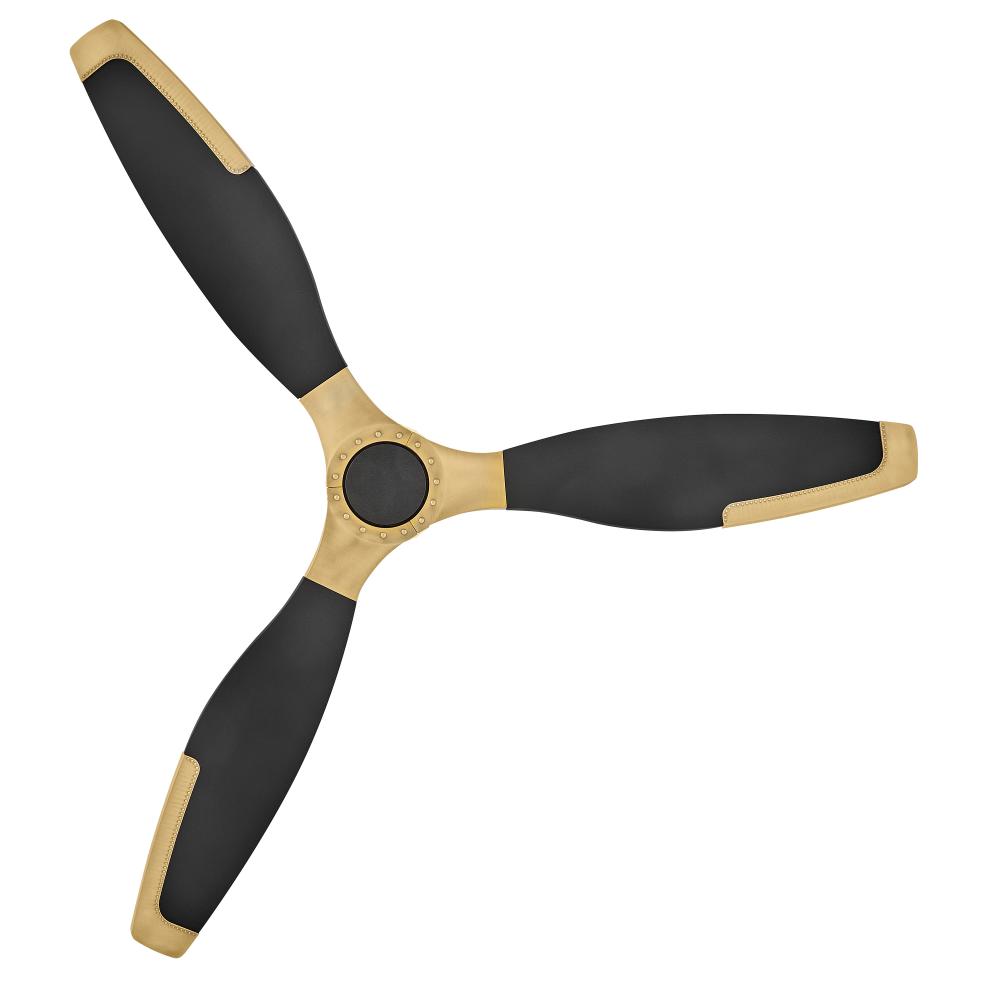

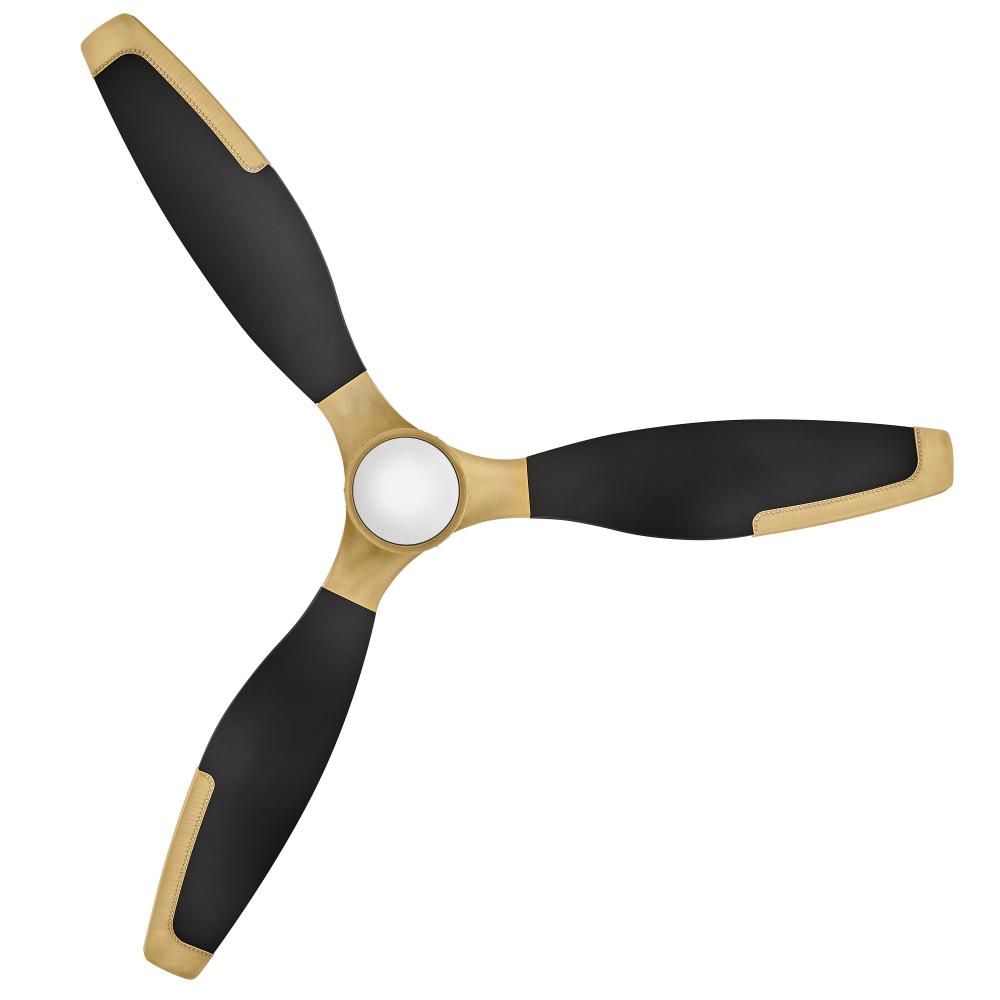

Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
49
RPMS High
144
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Other Details:
- Angular lines, a bold finish, simple shape and sturdy details merge for a robust but pared down industrial design
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty

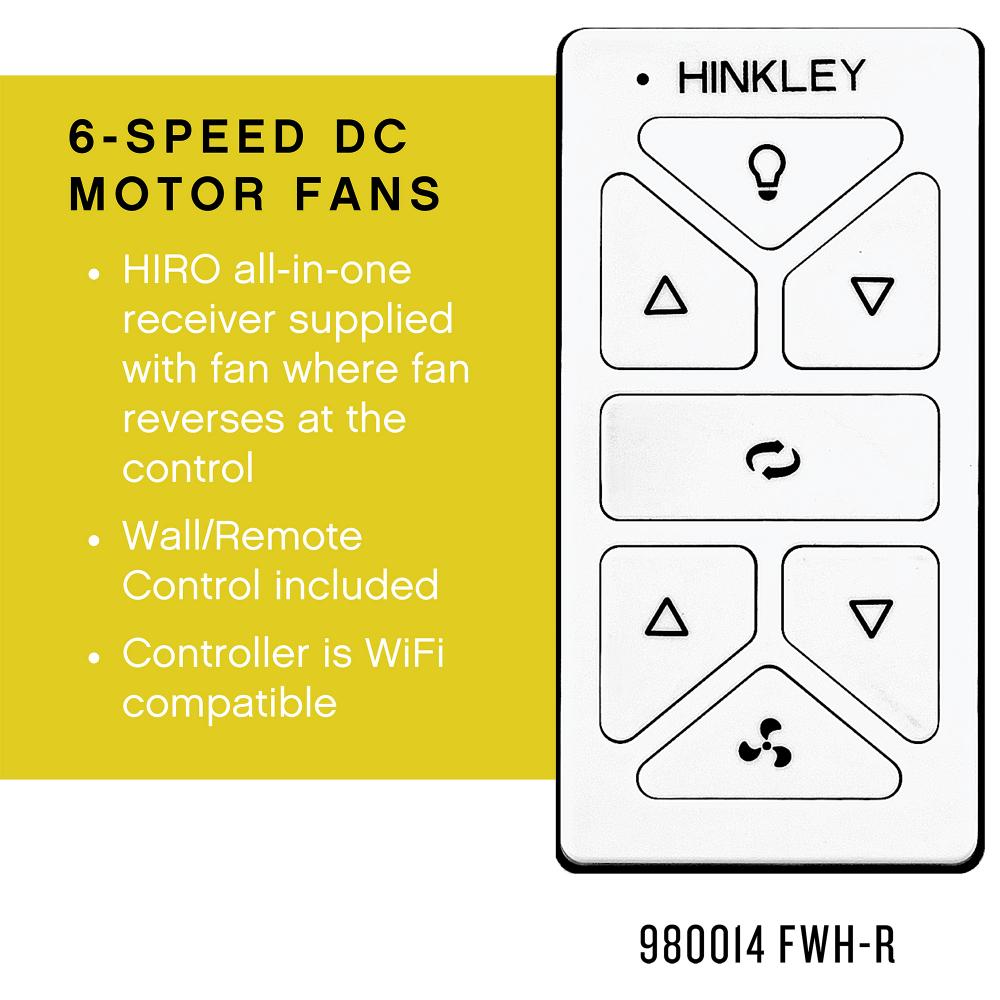

- Fan Control included, HIRO Control - 6 Speed Reversing
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- LED components carry a 5-year limited warranty
- Motor carries a lifetime warranty
- Powered by a highly efficient and quiet DC motor
- Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

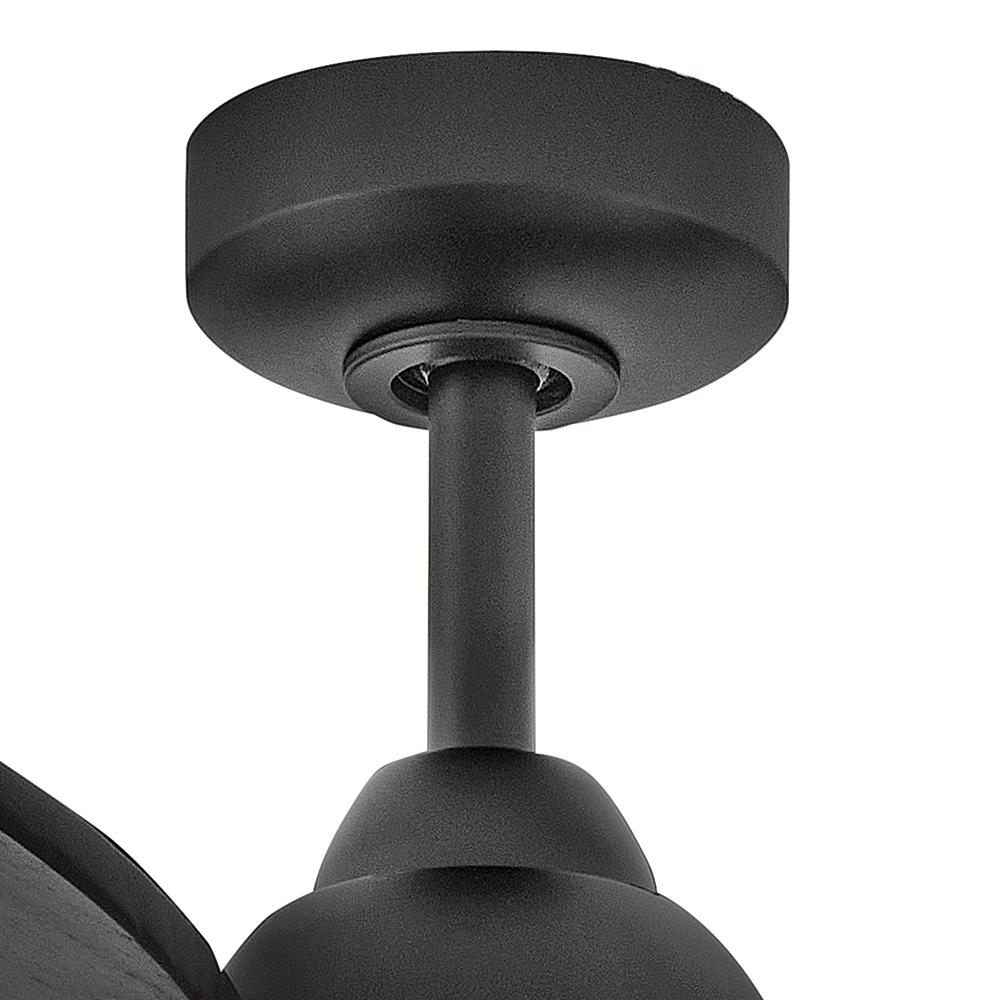

- This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- This item includes a light kit cover
- This item may be hung on a sloped ceiling
- This product uses recyclable or limited packaging materials to help reduce waste.
- WiFi compatible with included fan control
