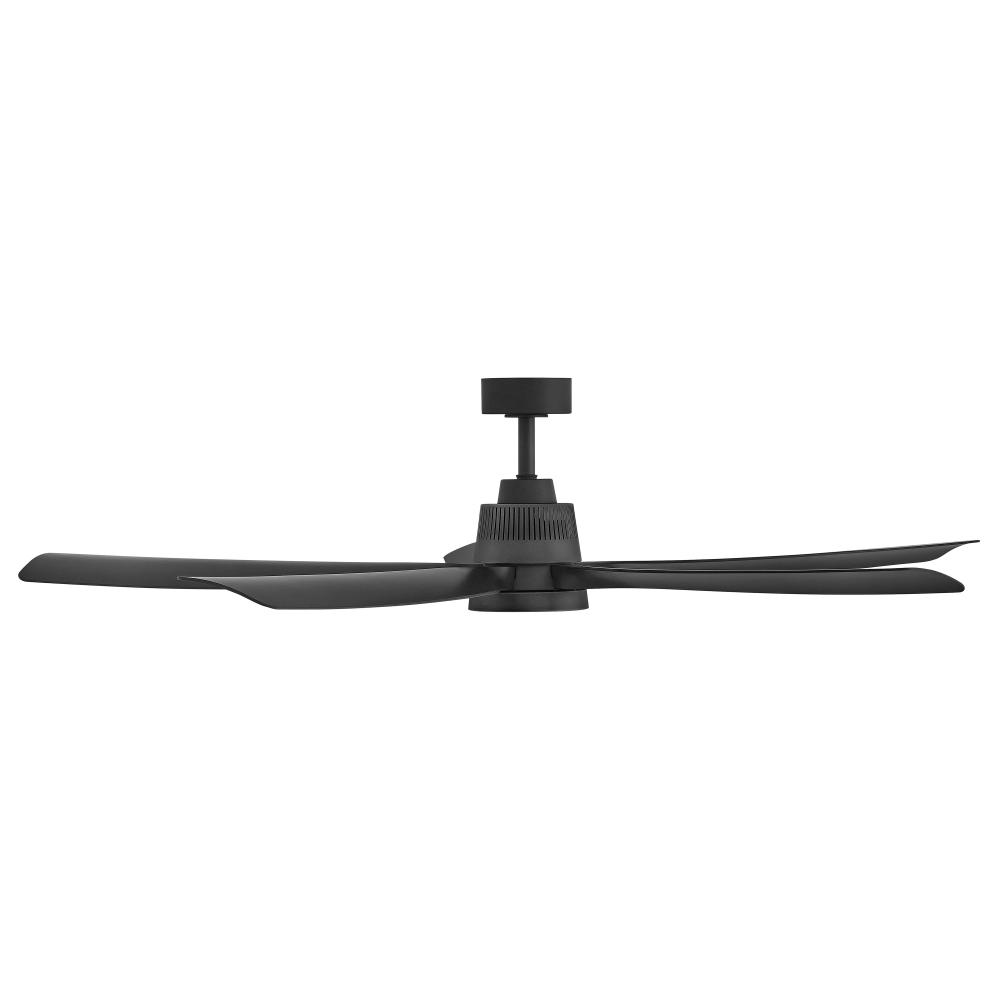

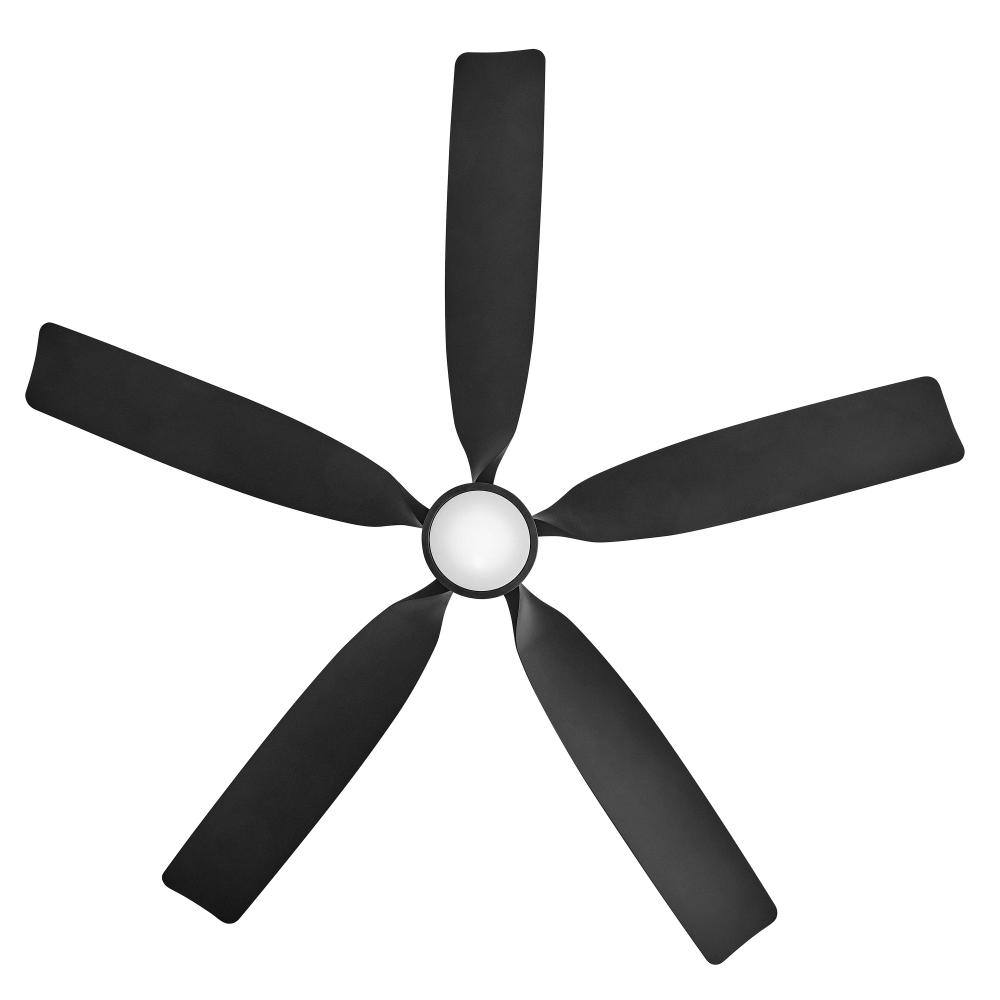

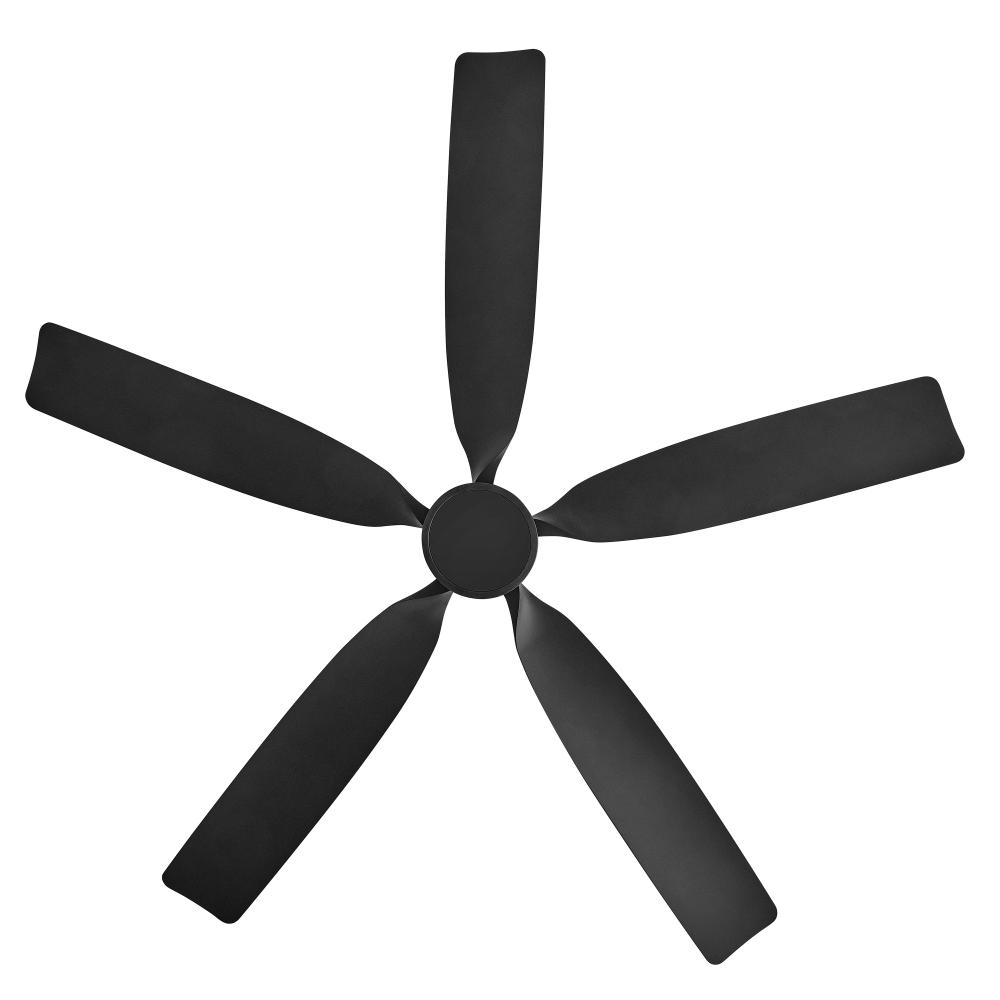

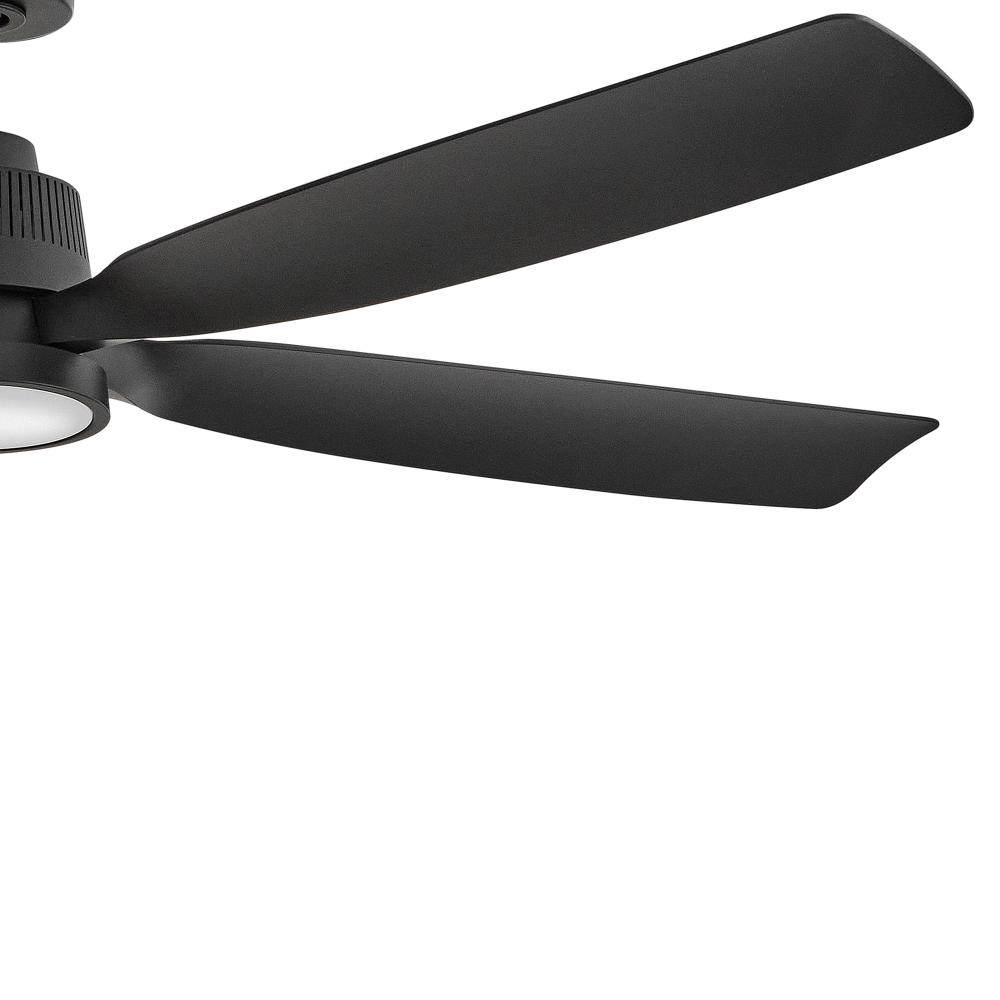

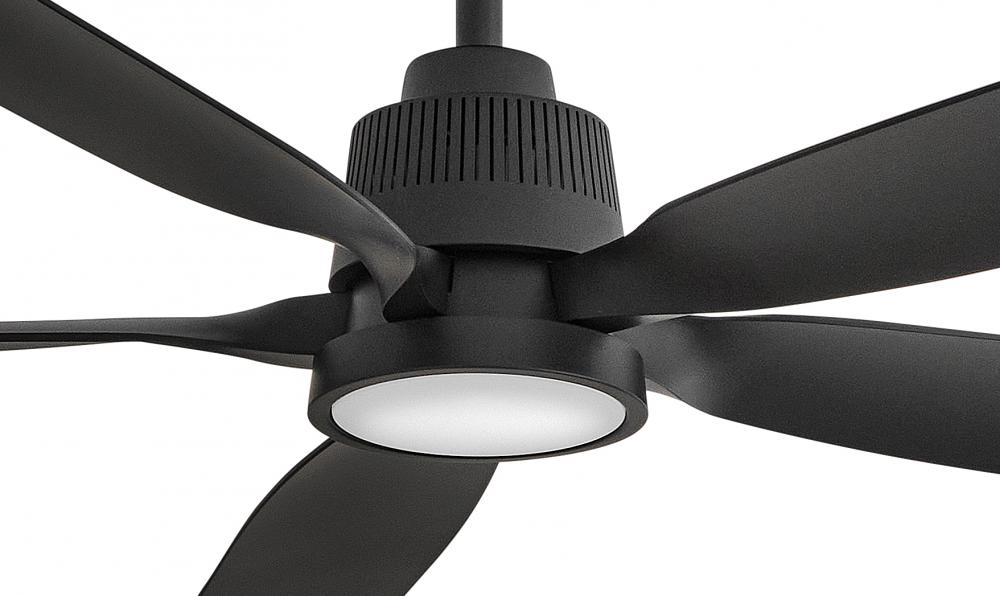

Bodin 64" LED Smart Fan (9X0DL)
Classic with a sophisticated tapered silhouette, Bodin’s uniquely curved blades add a cool touch and refreshing breezes to any setting. A versatile, damp-rated design complements both interiors and covered outdoor areas. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Downloads
Product Specification
Item #
9X0DL
Dimensions
Height: 13.75"
Width: 64.00"
Length: 64.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Transitional
Option
Damp Rated
Category
Fan
Finish
Matte Black
Style
Transitional
Family
Bodin
Glass
White Polycarbonate
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
7749
Amperage
0.5
Blade Finish
Matte Black
Blade Pitch
14
Blade Span
64
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
06/01/2024
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DC125
Motor Type
DC
Ship Carton Height
10
Ship Carton Length
35
Ship Carton Width
17
Ship Weight
23.5
Vendor Ship Method
Parcel
Weight
17
Airflow Avg
5665
AMPS Avg
0.3
Avg Energy Use
23
Blade Material
Composite
Blade Options Available
No
Blade To Ceiling Height
10
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dual Mount
No
Efficiency Avg
244
Efficiency High
230
Energy Cost Avg
7
Energy Cost High
10
Energy Use High
34
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
5
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
85
RPMS High
118
Safety Rating
ETL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Other Details:
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty

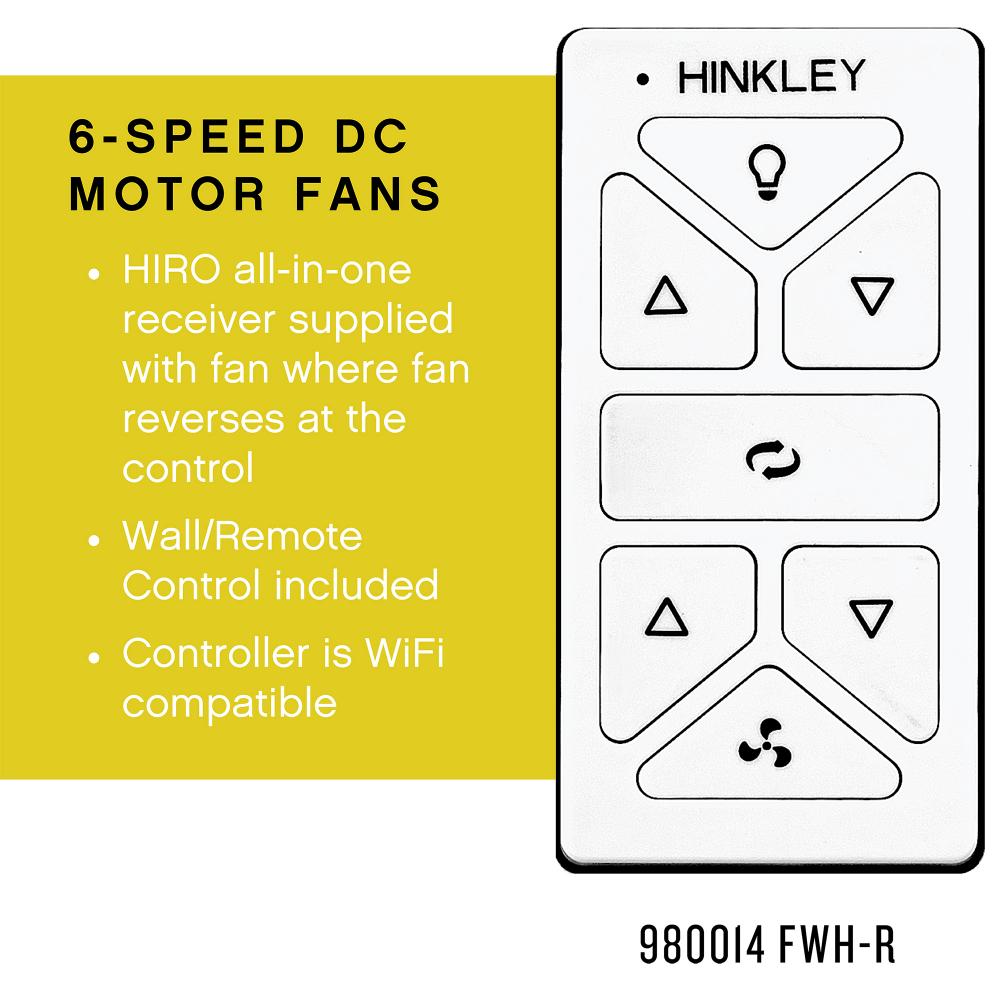

- Fan Control included, HIRO Control - 6 Speed Reversing
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- LED components carry a 5-year limited warranty
- Merging the best of traditional and modern elements with a sophisticated and streamlined look
- Motor carries a lifetime warranty
- Powered by a highly efficient and quiet DC motor
- Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
- This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- This item includes a light kit cover
- This item may be hung on a sloped ceiling
- This product uses recyclable or limited packaging materials to help reduce waste.
- WiFi compatible with included fan control
Finish
Additional options that would change other selections
Call for Price
BASE PRICE:
$
779
00
/
/ 1
($779.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 175 items available.
