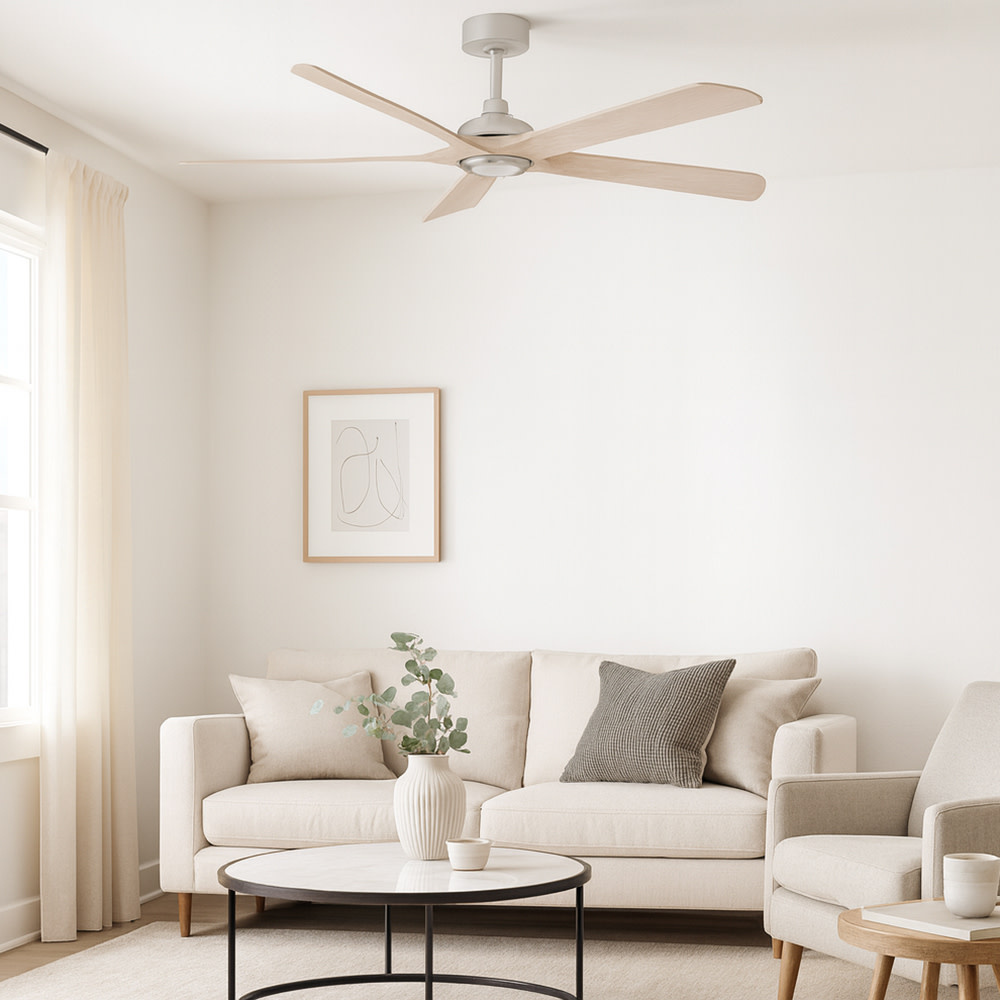

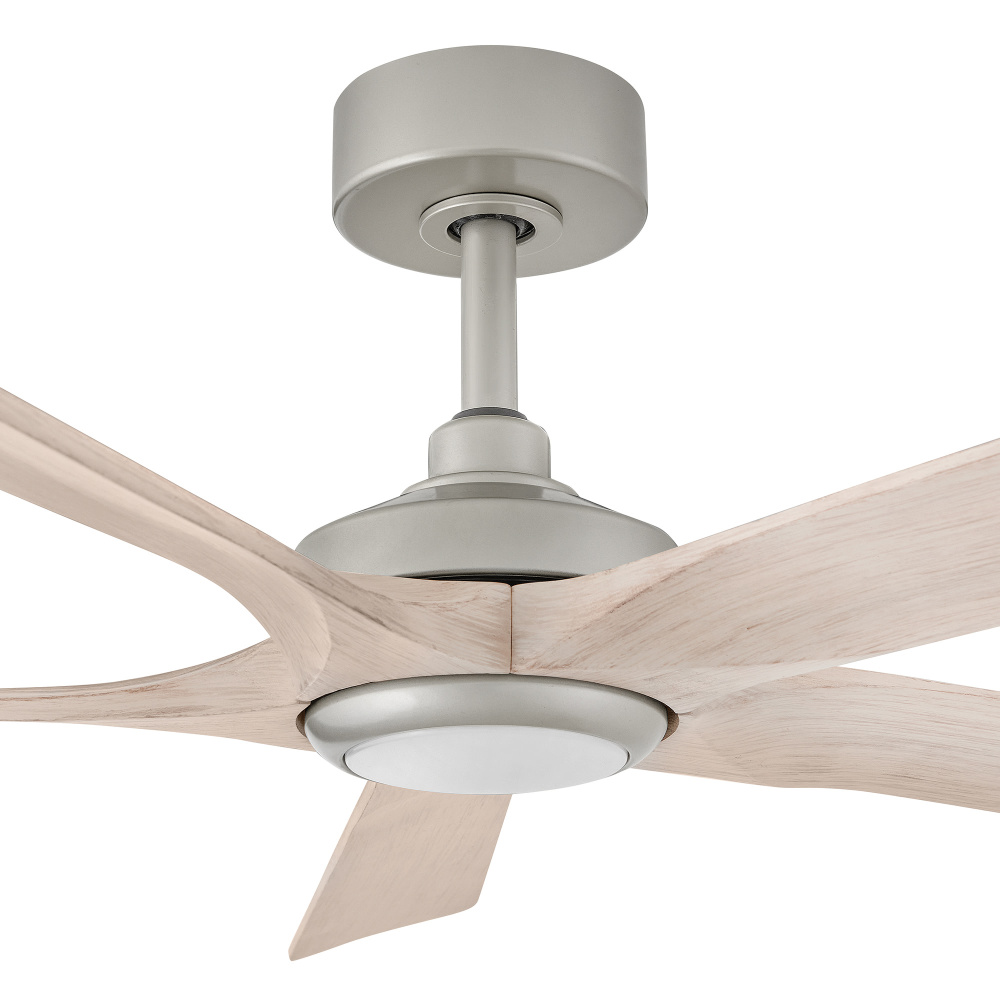

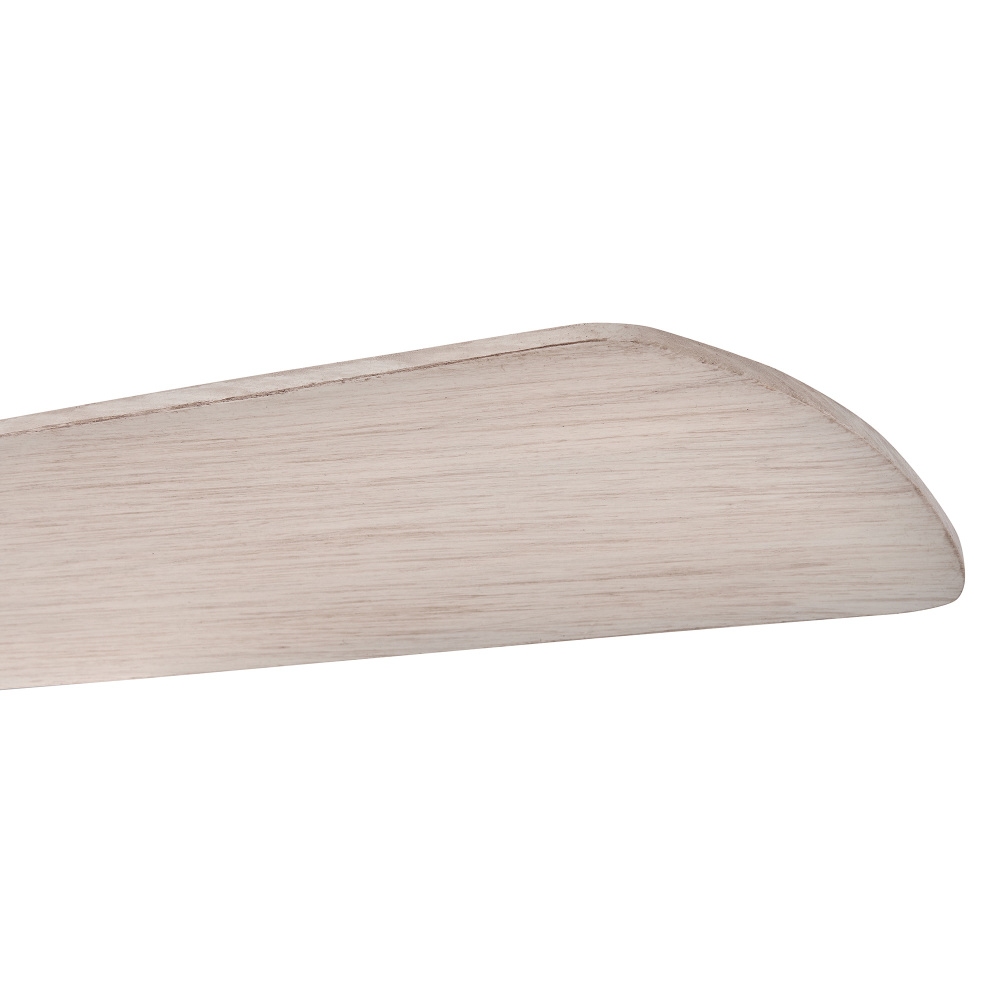

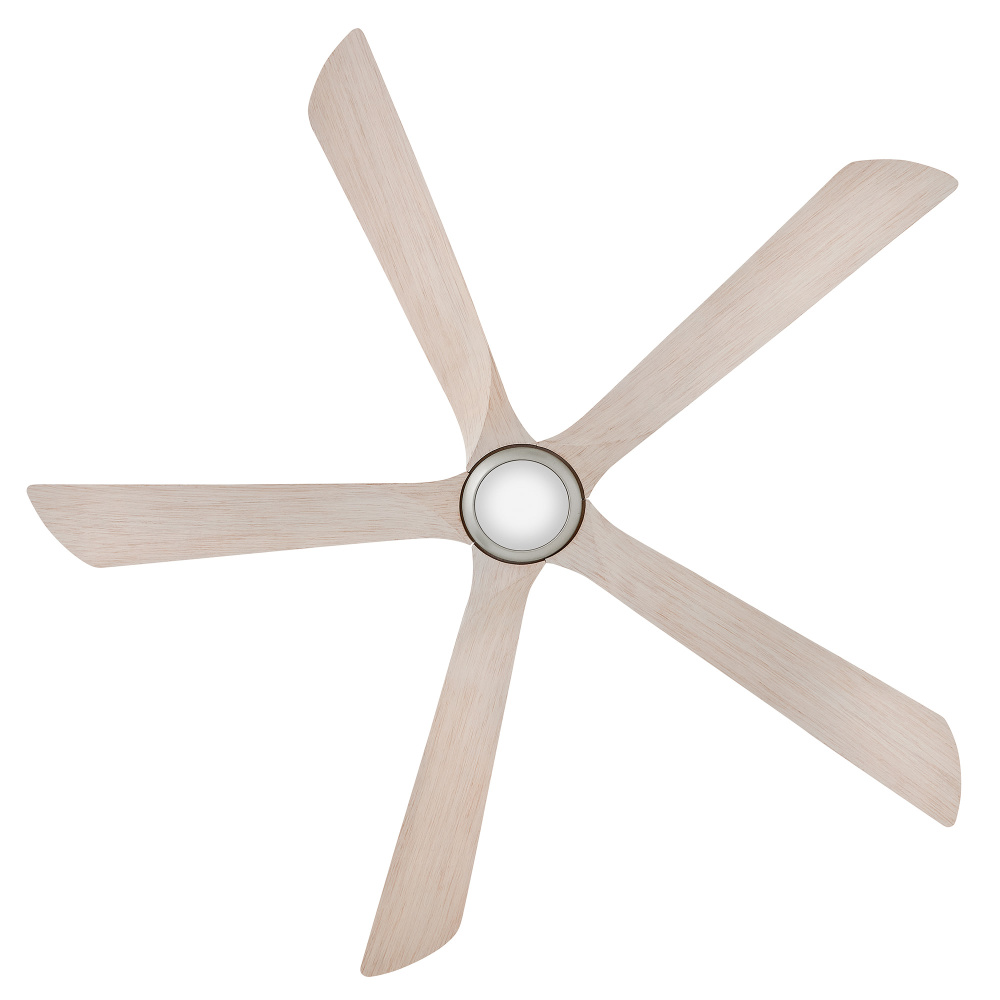

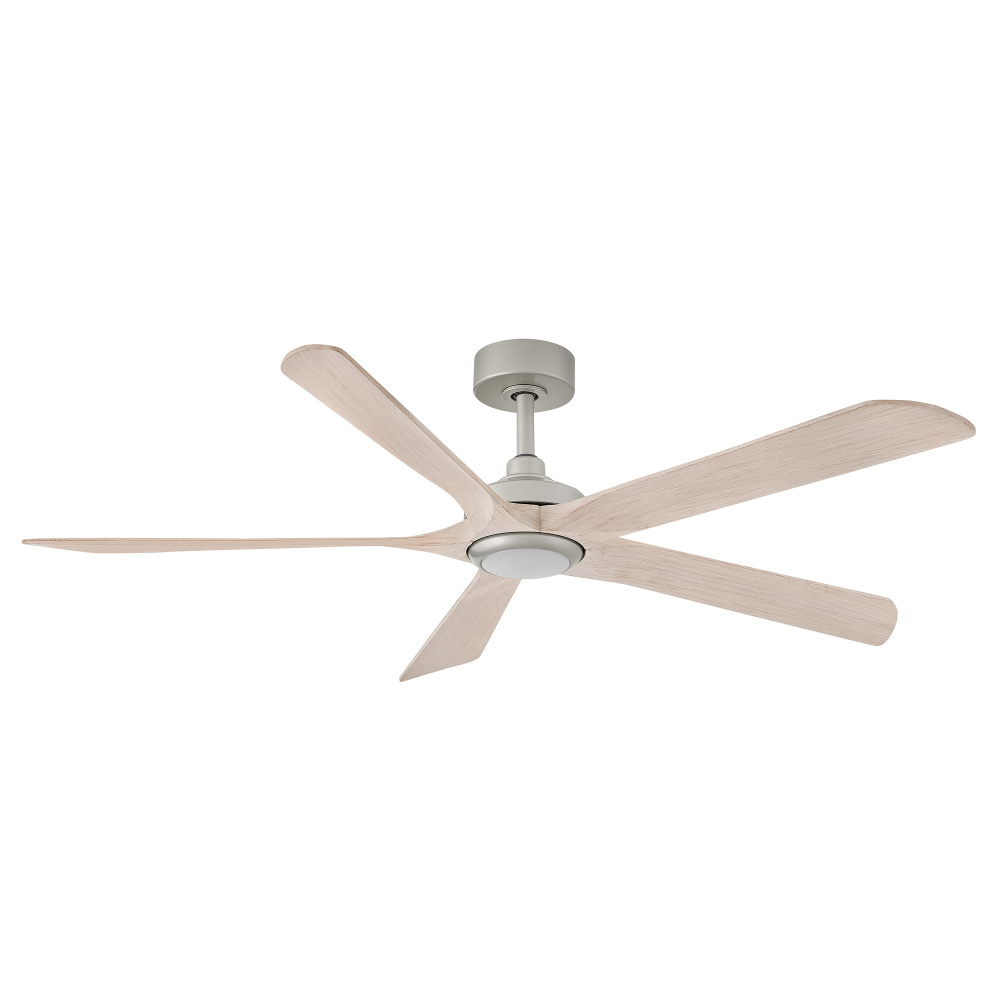

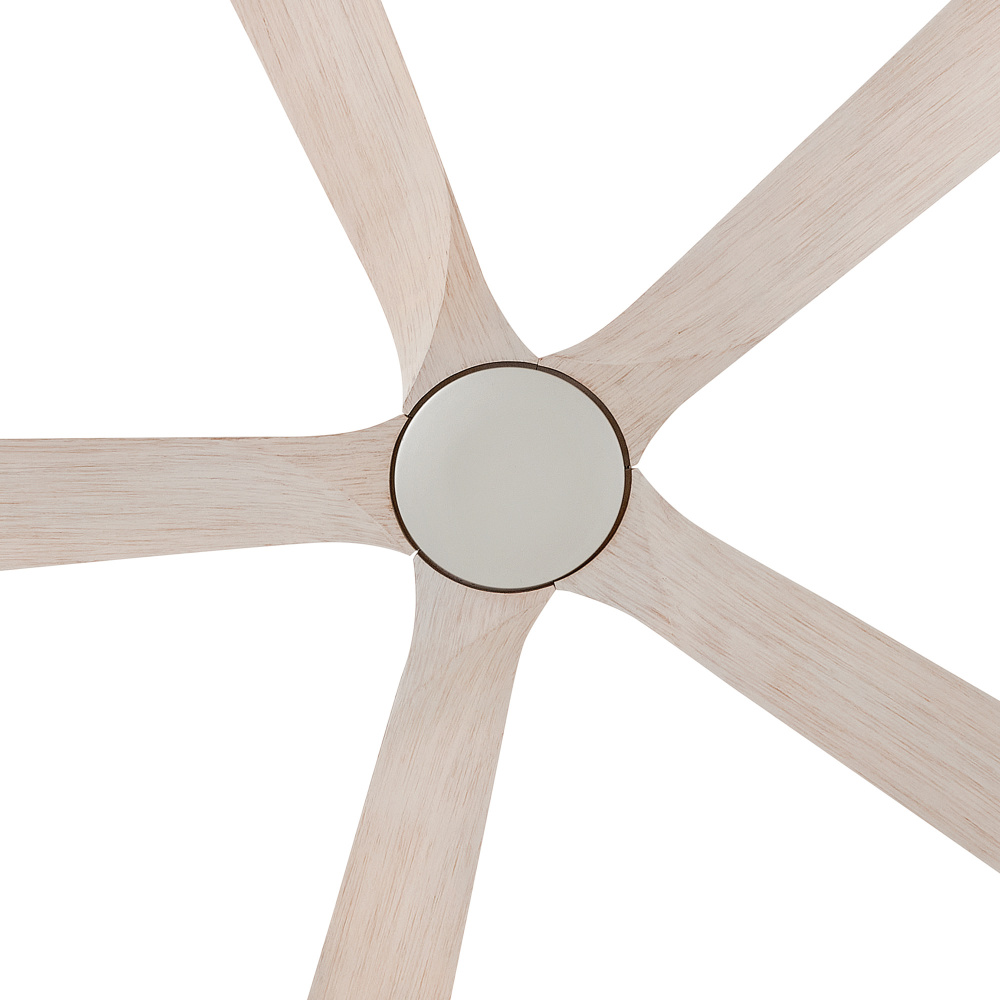

Layton’s versatile, transitional design features subtly curved wood blades, available in a variety of finish combinations to complement any interior living space. Integrated LEDs cast warm, dimmable illumination that fills your space with a comfortable atmosphere. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Nickel
Style:
Transitional
Option:
Title 24
Dry Rated
LED
Voltage:
100-120
Glass Finish or Style:
White/Off-White
Lumens:
1101-1600
Kelvin:
2501-3000
Location Rating:
Dry Rated
Smart Home:
Yes
Refinement Options
Category:
Fan
Finish:
Brushed Nickel
Style:
Transitional
Option:
LED
Title 24
Family:
Layton
Glass:
White Polycarbonate
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
7152
Amperage:
0.5
Blade Finish:
Bleached Ashwood
Blade Pitch:
12.5

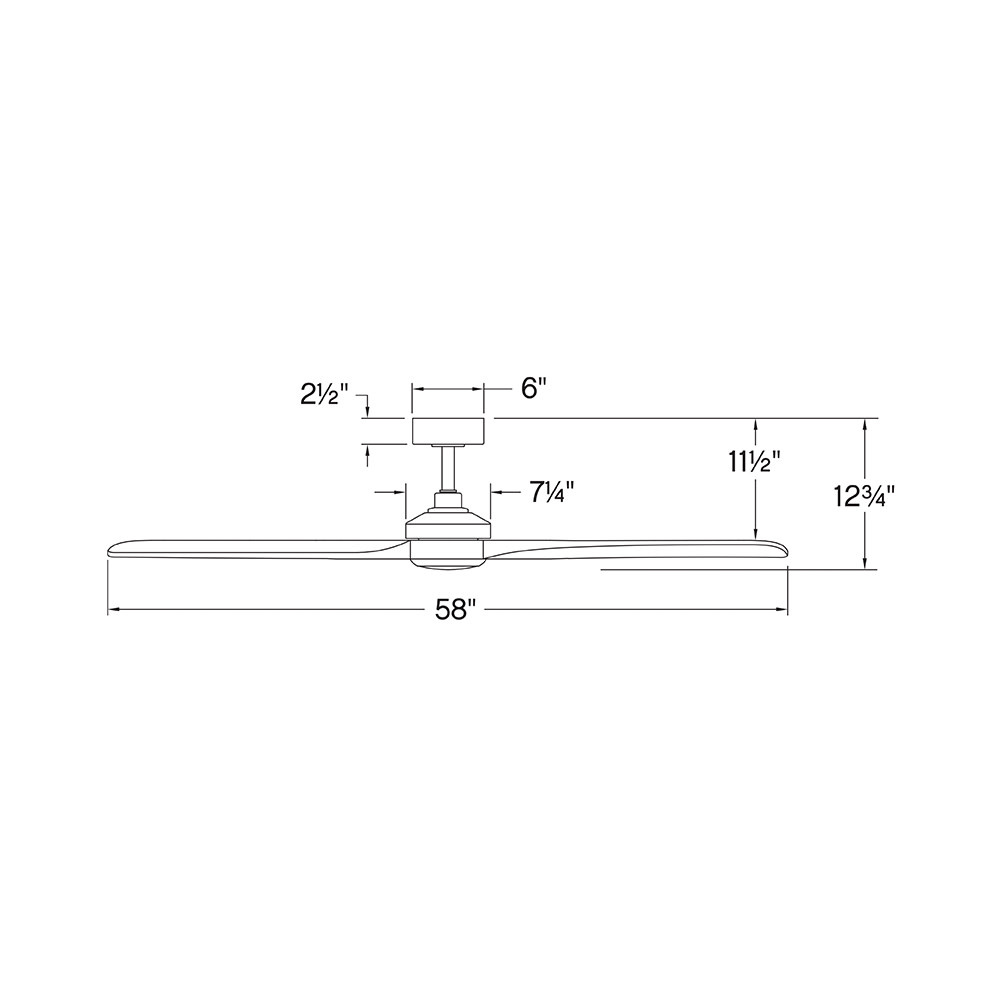

Blade Span:
58
Bulb Dimmable:
Yes
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia x 2.25 D
Introduction Date:
01/01/2026

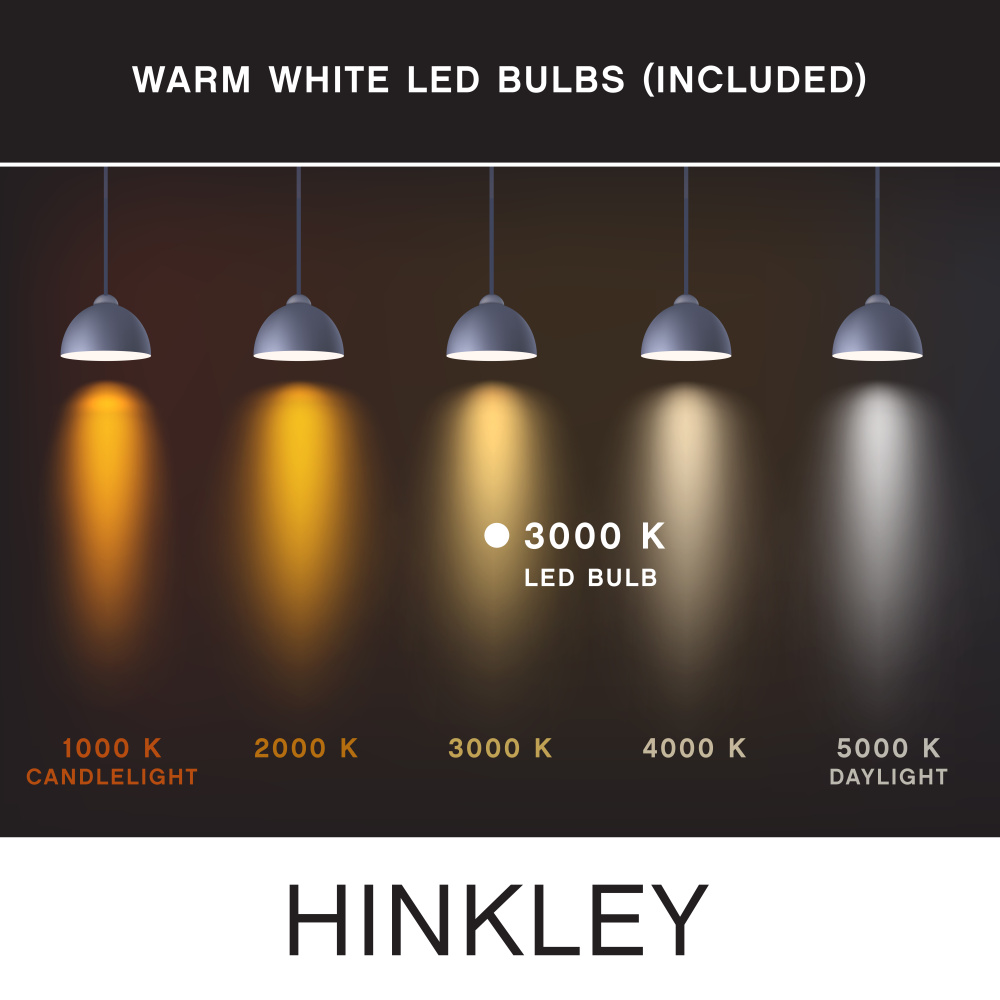

Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Type:
DC
Ship Carton Height:
8
Ship Carton Length:
29
Ship Carton Width:
16
Ship Weight:
19.5
Vendor Ship Method:
Parcel
Weight:
13.5
Airflow Avg:
4951
AMPS Avg:
0.28
Avg Airflow Efficiency:
176
Avg Energy Use Watts:
22
Blade Material:
Wood

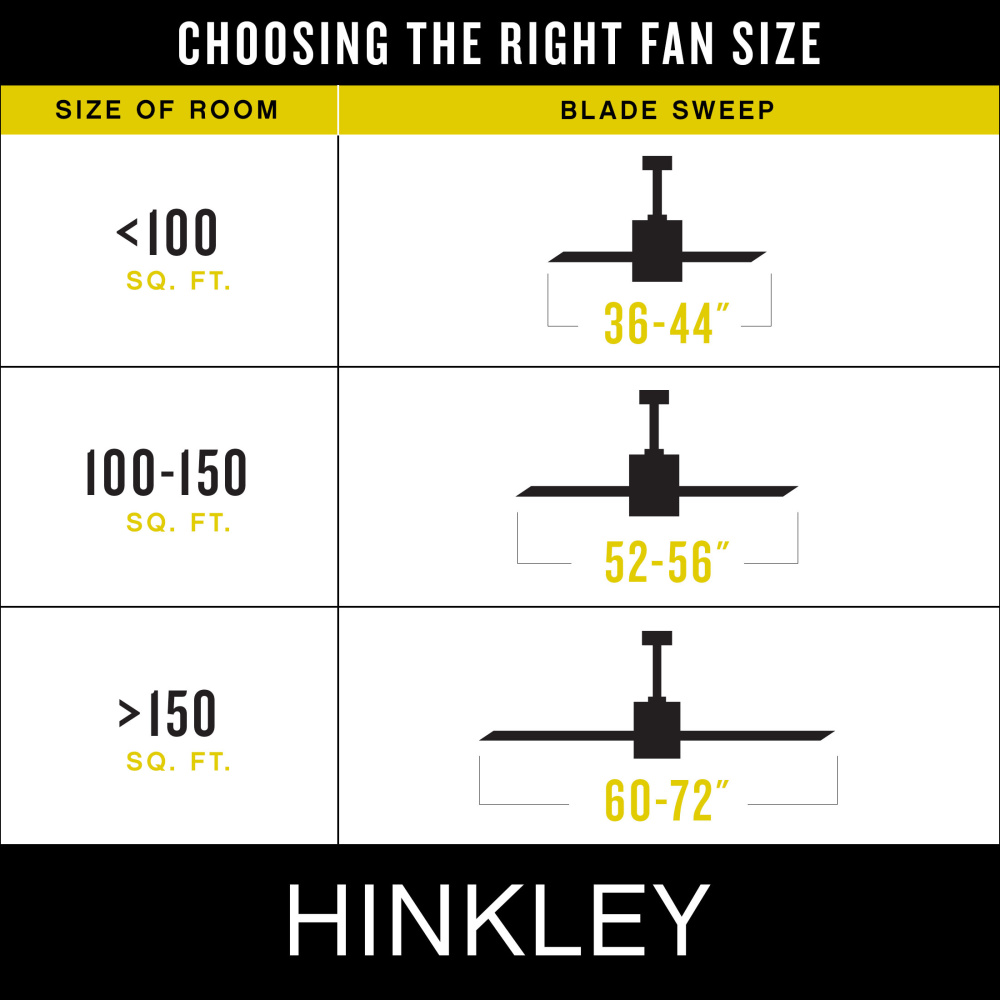

Blade Sweep:
58
Blade To Ceiling Height:
10.25
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dimmer Type:
CL Type (SSL7A)
Efficiency High:
195
Energy Cost Avg:
6
Energy Cost High:
10
Energy Use High:
36.6
Fan Control:
Yes
Flush Mount Fan:
No
Glass Groups:
White
Incandescent Equivalency:
100 W
Install Sloped Ceiling:
Yes
LED:
Yes
Light Kit Adaptable:
No
Light Kit Included Removeable:
Yes
Light Source:
Integrated LED
Location Rating:
Dry Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Motor Name:
DC153x16
Number of Blades:
5
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
101
RPMS High:
151
Safety Rating:
ETL Approved
Slope Degree:
20
Stand By Power:
0.7
Title 24:
Yes
Uplight 2:
No
WIFI Control Included:
Yes
Can be hung on a sloped ceiling
Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app
Dry Rated
Energy-efficient integrated LED - safer for the environment and low maintenance
Fan Control included, 6 Spd HIRO:R

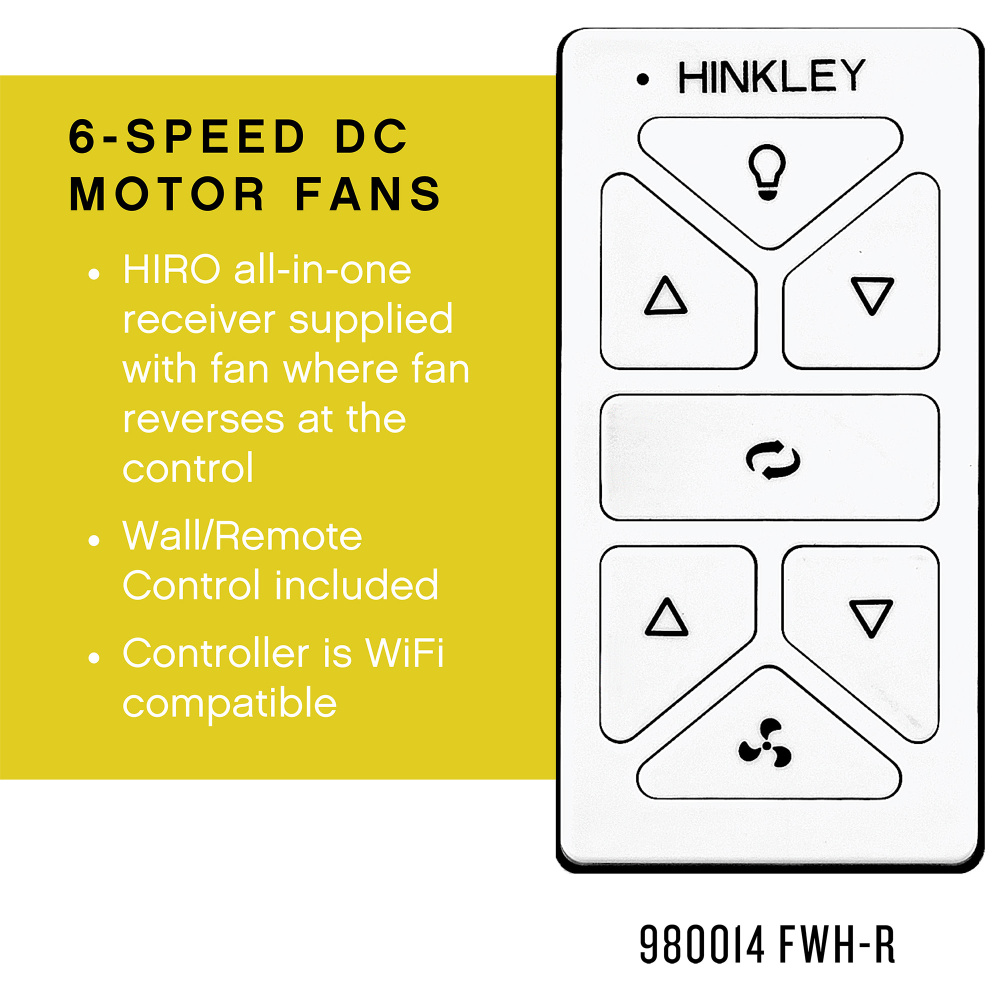

Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
Fans should be installed at a minimum of 7 feet from the floor
LED components carry a 5-year limited warranty
Light kit cover included
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
This item includes a 6" down rod (other lengths of down rods are available)
WiFi Enabled Smart Fan is compatible with your home’s WiFi network

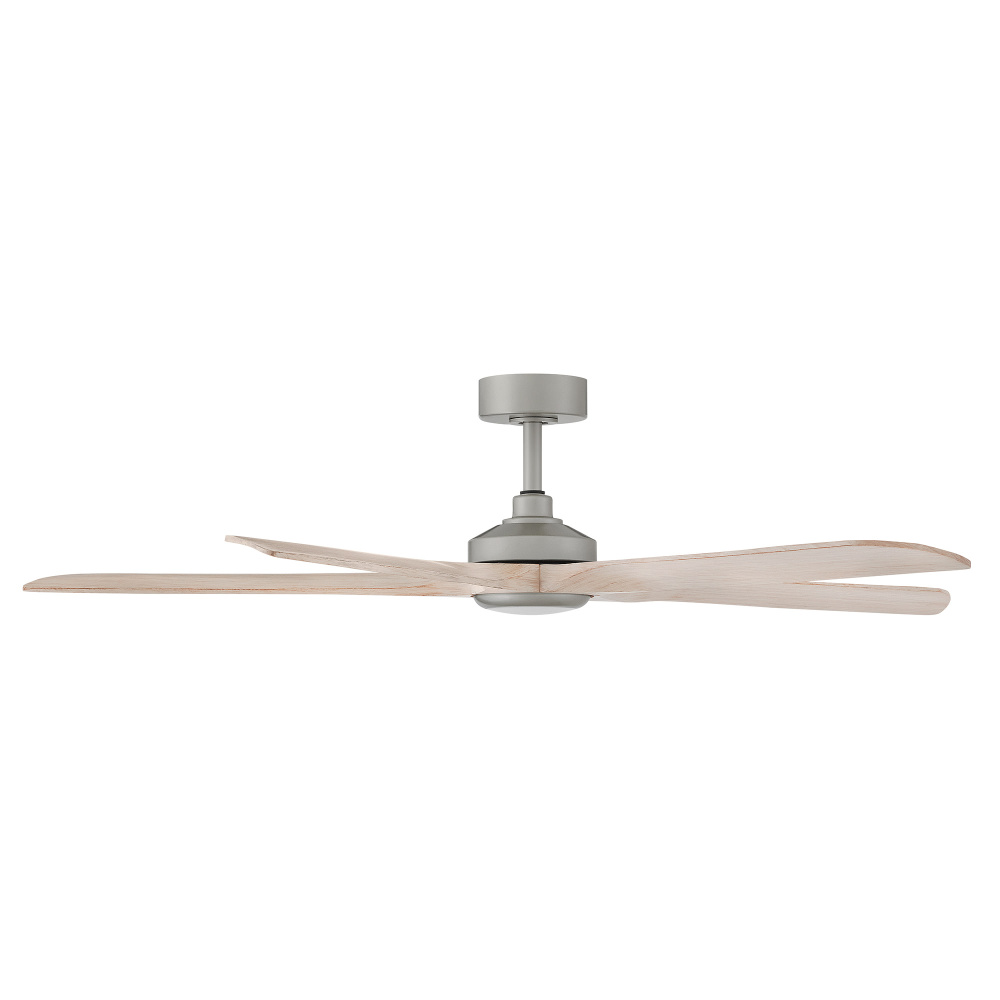

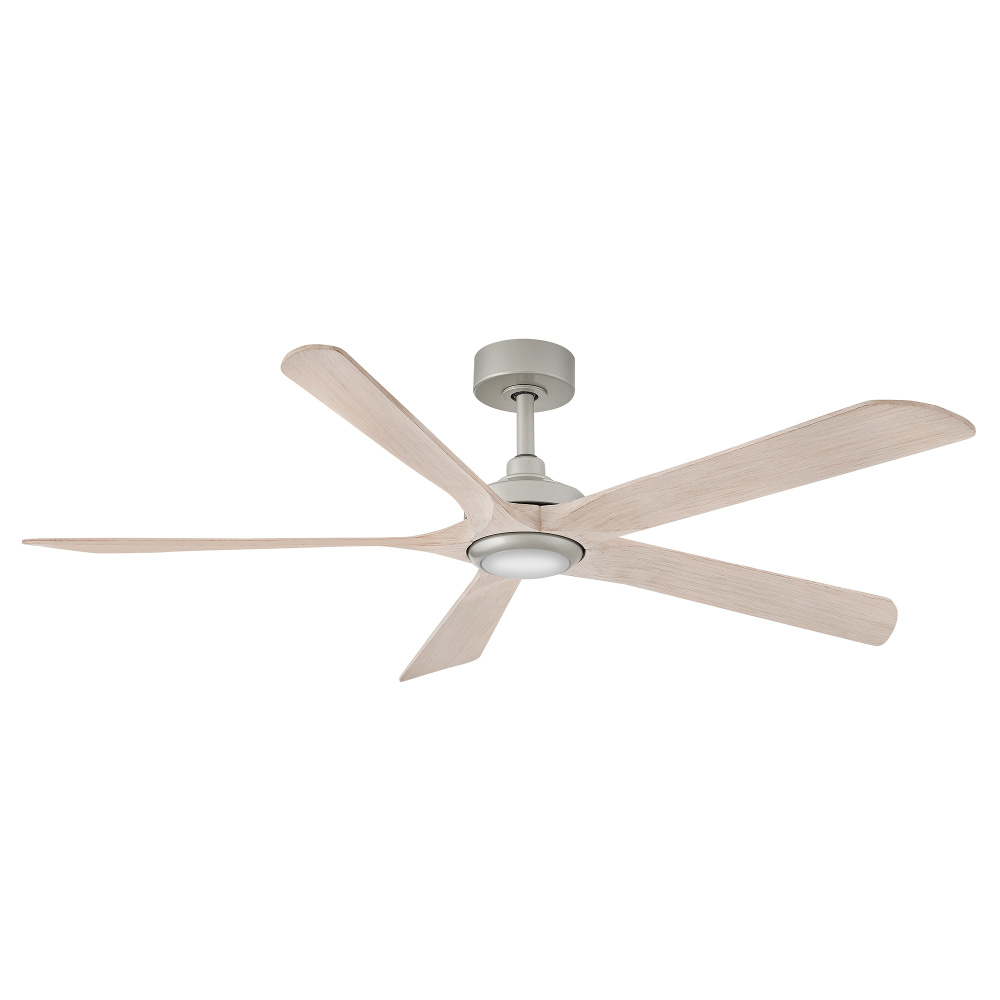

![Layton 58" Smart Fan](/vendors/87/large/907358FBB-LDD_Layton_MAIN.jpg "Layton 58" Smart Fan")
