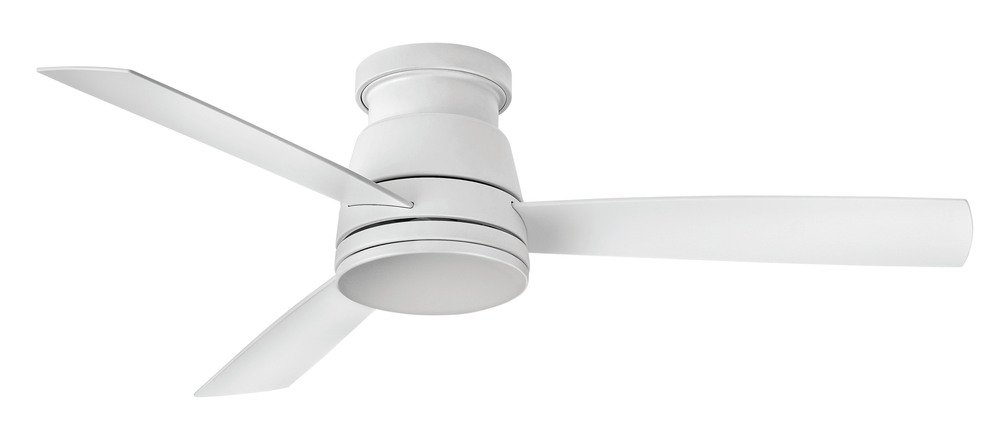

Trey 52" LED Smart Fan (9LWDR)

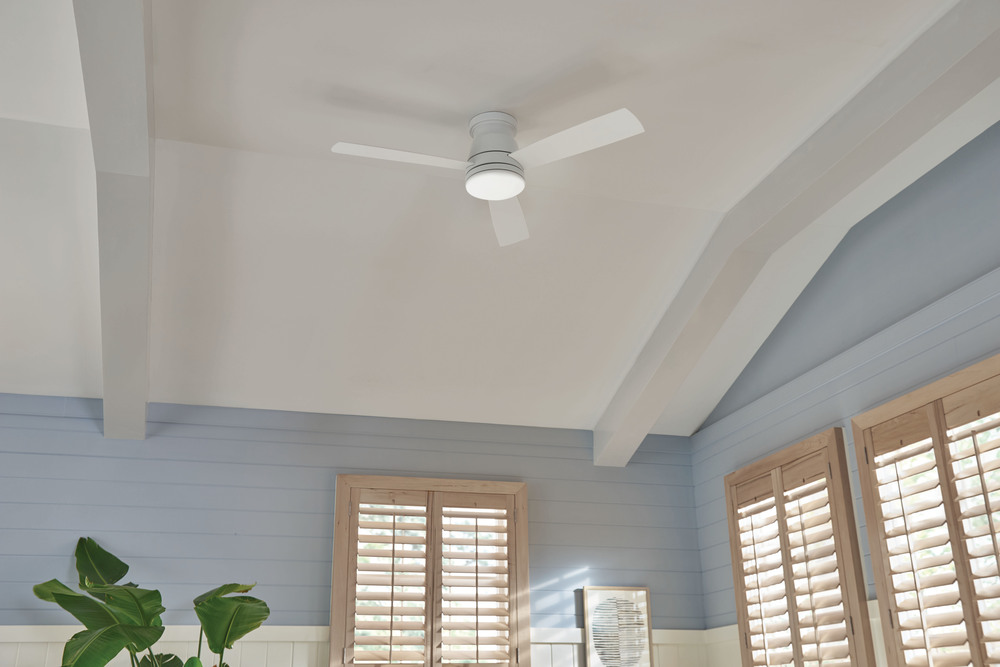

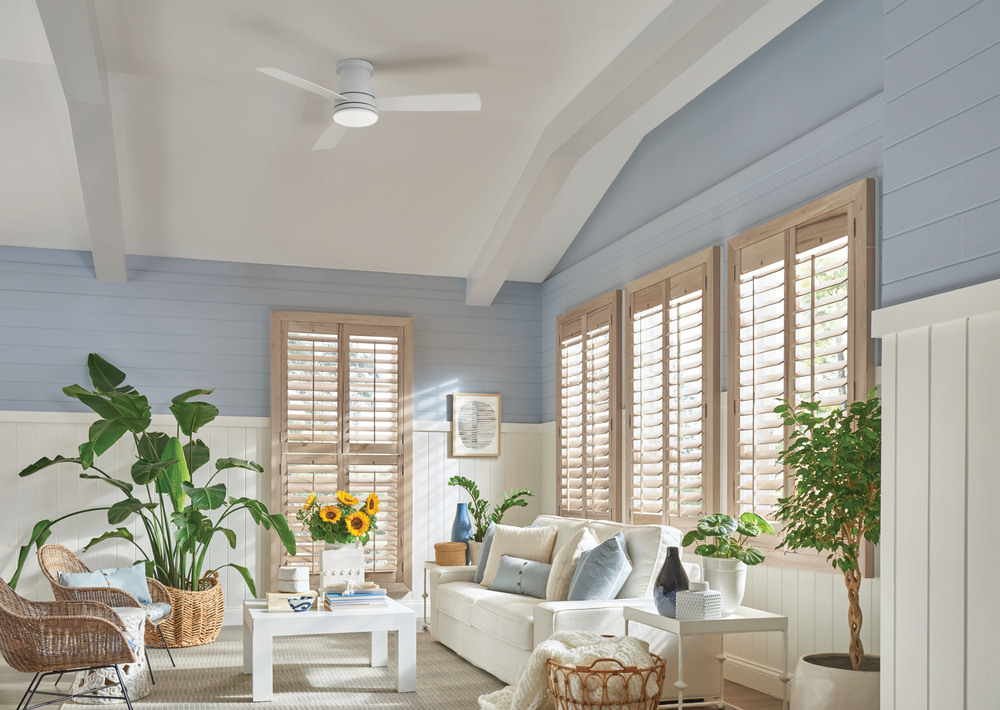

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile Brushed Nickel, Metallic Matte Bronze and Matte White finish options, and its integrated LED lighting and DC motor technology deliver excellent energy efficiency. A timeless etched opal light kit completes the look for a refined appearance. Trey is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Product Specification
Item #
9LWDR

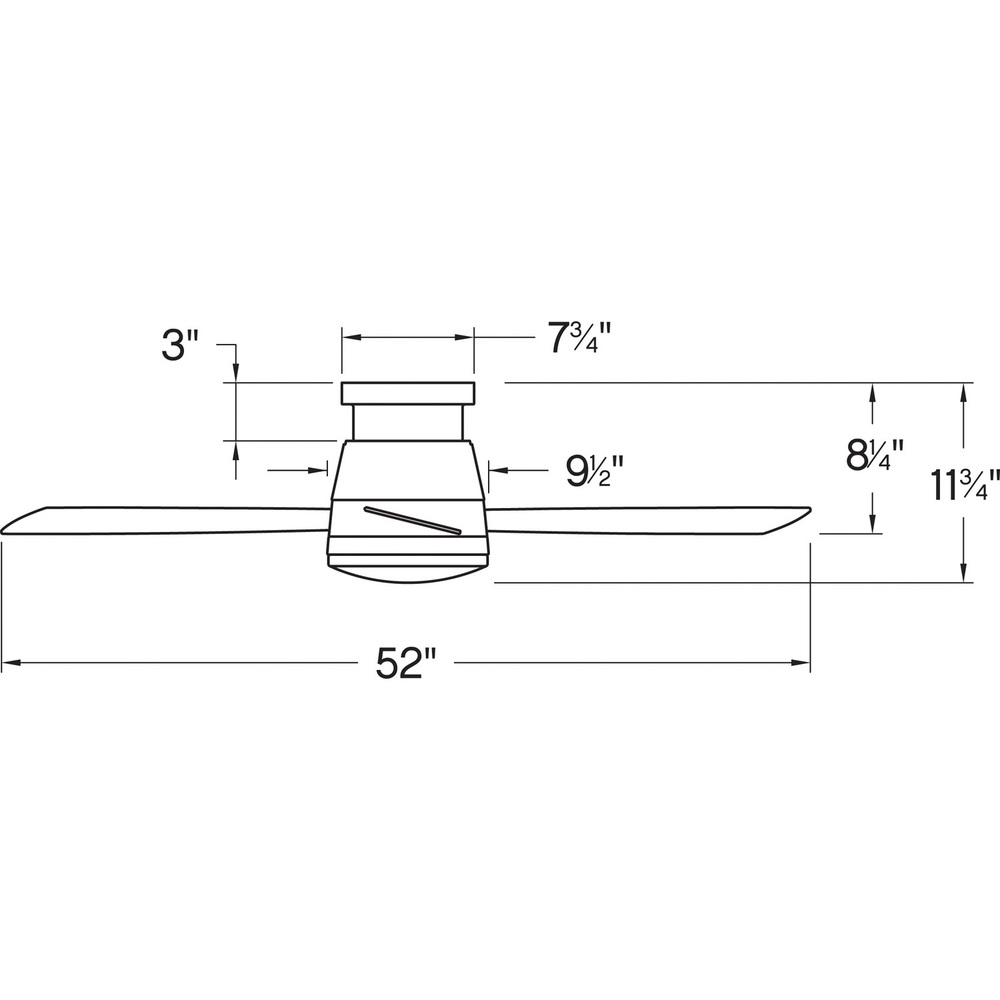

Dimensions
Height: 11.75"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
White
Style
Transitional
Option
Title 24
, Wet Rated
, LED
, Prop 65
Voltage
100-120
Lumens
1101-1600
Number of Blades
3 Blades
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Fan
Finish
Matte White
Style
Transitional
Family
Trey
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
4827
Amperage
0.33
Blade Finish
Matte White
Blade Pitch
20
Blade Span
52
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
7.75 Dia.
Introduction Date
01/01/2020
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Aluminum
Motor Size
153 x 10
Motor Type
DC
Ship Carton Height
12.5
Ship Carton Length
26
Ship Carton Width
12
Ship Weight
26.5
Vendor Ship Method
Parcel
Weight
24.5

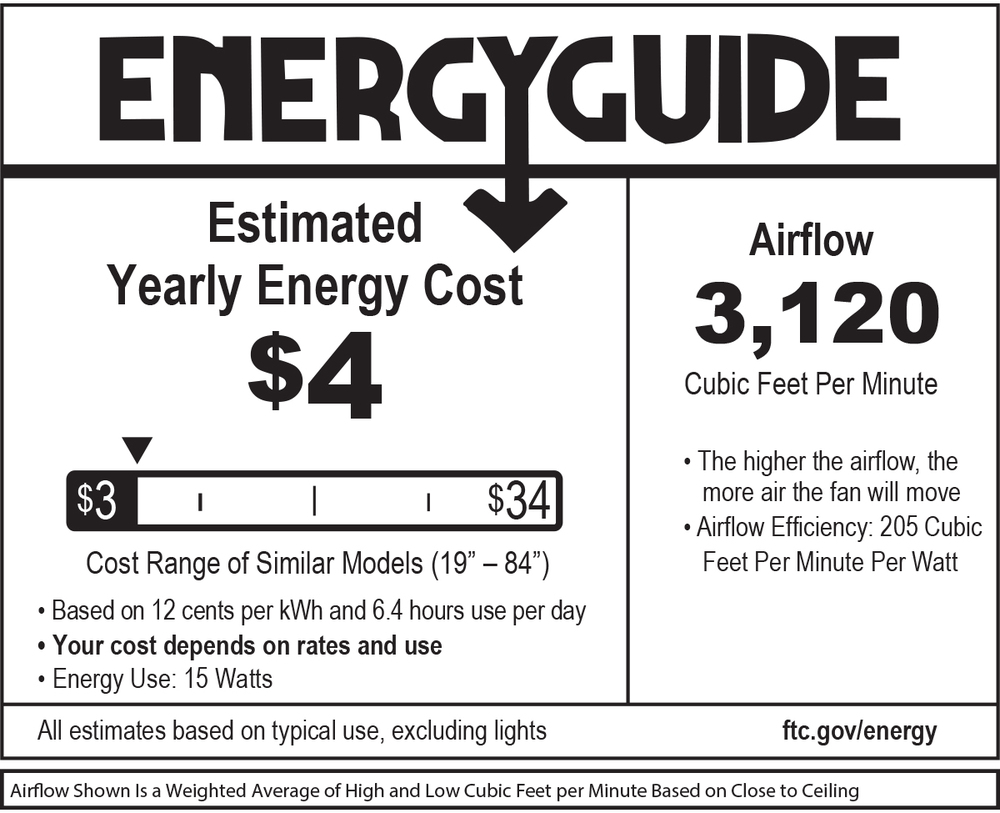

Airflow Avg
3120
AMPS Avg
0.19
Avg Energy Use
15
Blade Material
Composite
Blade Options Available
No
Blade To Ceiling Height
8.25
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes

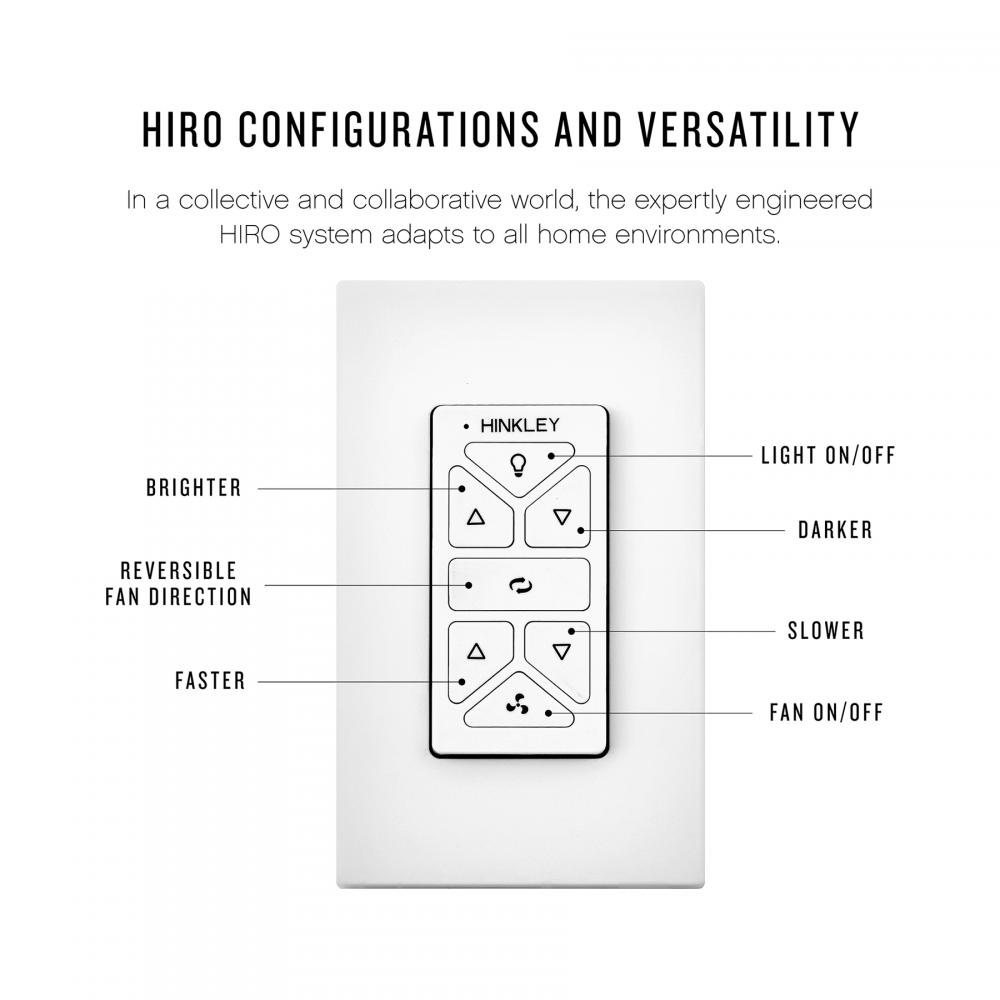

Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dual Mount
No
Efficiency Avg
205
Efficiency High
200
Energy Cost Avg
4
Energy Cost High
7
Energy Use High
24.2
Fan Control
Yes
Flush Mount Fan
Yes
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Wet Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
108
RPMS High
169
Safety Rating
UL Approved, C-US Approved
Single Power Switch
Yes
Sloped Ceiling Adaptable
No
Stand By Power
0.2
Title 24
Yes
WIFI Control Included
Yes
WIFI Control Optional
No
Other Details:
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty

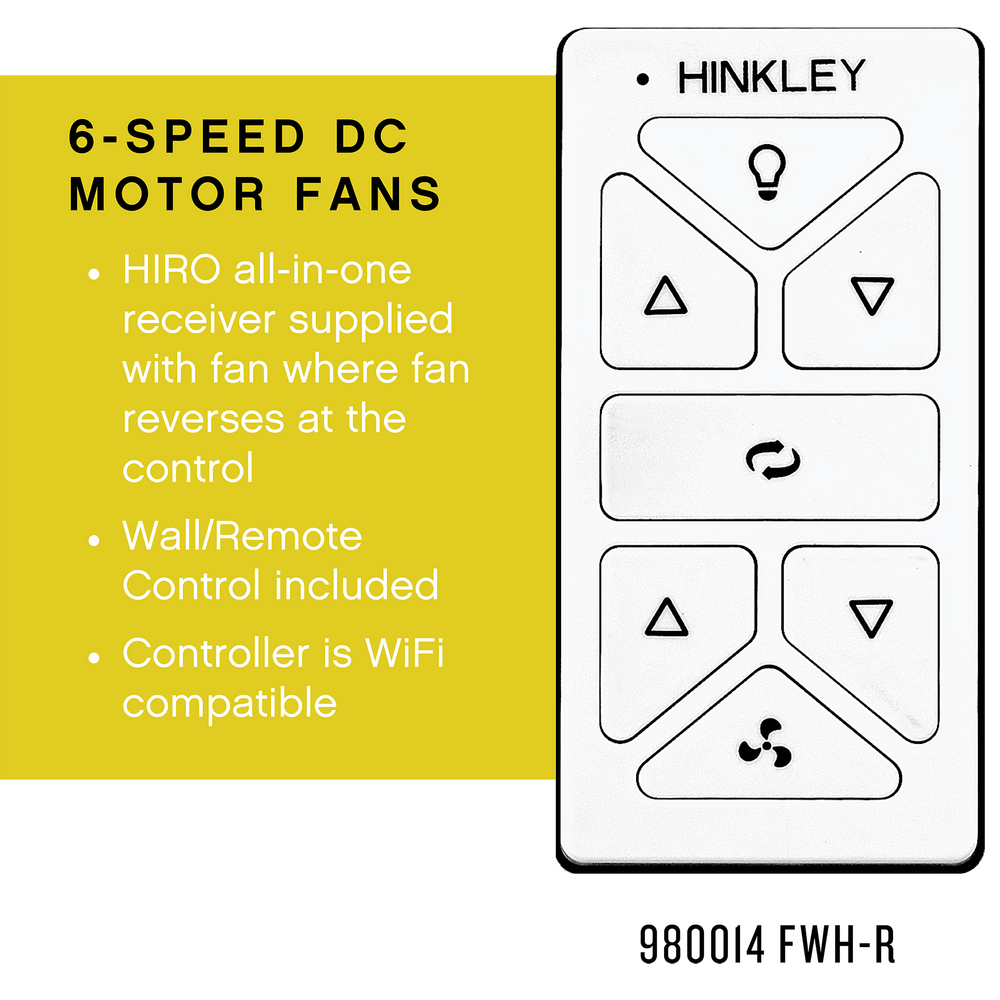

- Fan Control included, HIRO Control - 6 Speed Reversing
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- LED components carry a 5-year limited warranty
- Merging the best of traditional and modern elements with a sophisticated and streamlined look
- Motor carries a lifetime warranty
- Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
- WiFi compatible with included fan control
