Product Overview

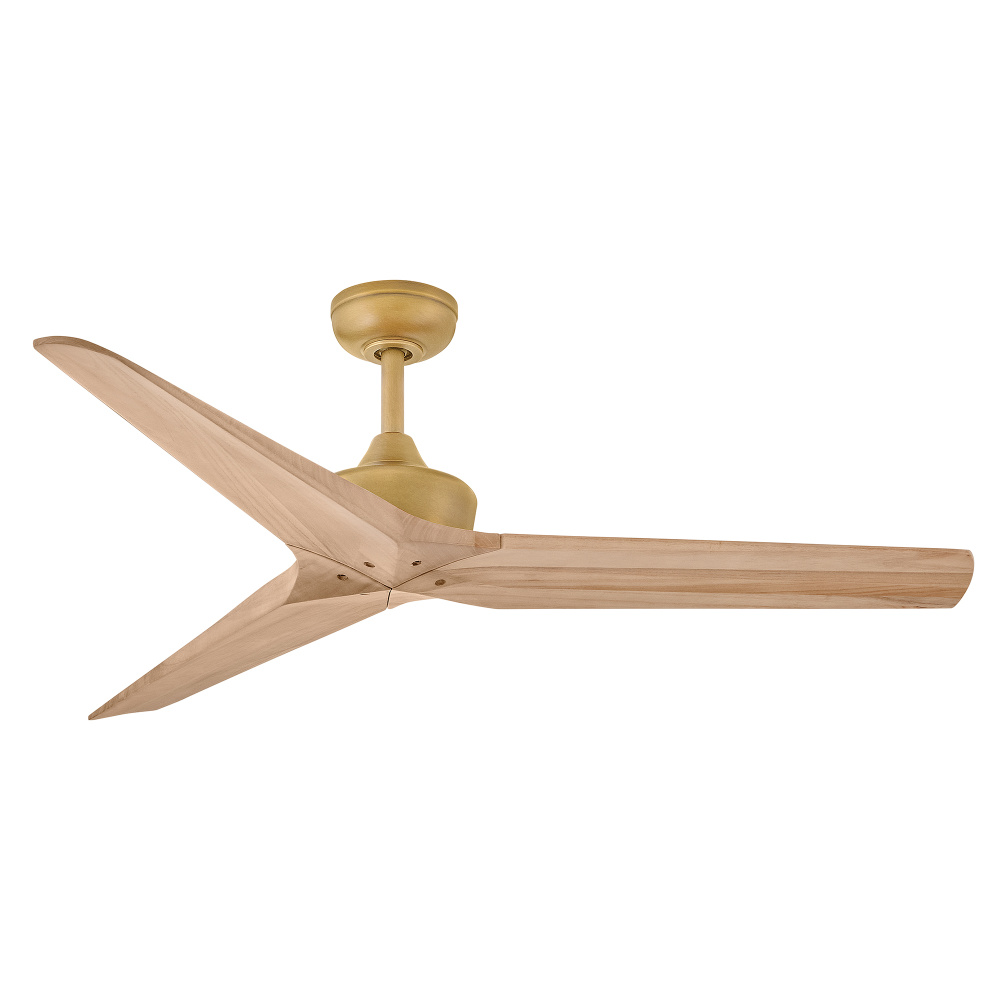

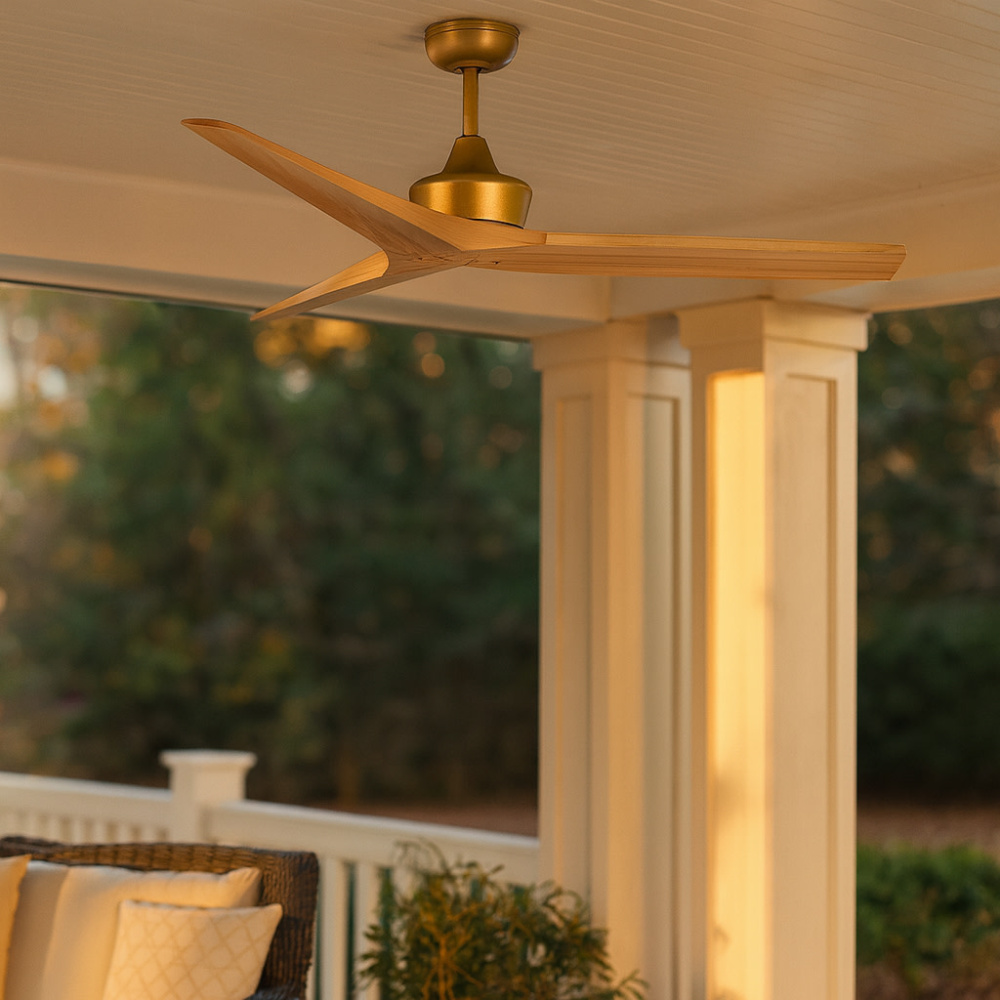

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Standard Information

Finish:

Brass

Style:

Modern

Option:

Damp Rated

Voltage:

100-120

Location Rating:

Damp Rated

Smart Home:

Yes

Refinement Options

Category:

Fan

Finish:

Heritage Brass

Style:

Modern

Family:

Chisel

Voltage:

120 V

Air Flow Efficiency:

6292

Amperage:

0.53

Blade Finish:

Natural

Blade Pitch:

18

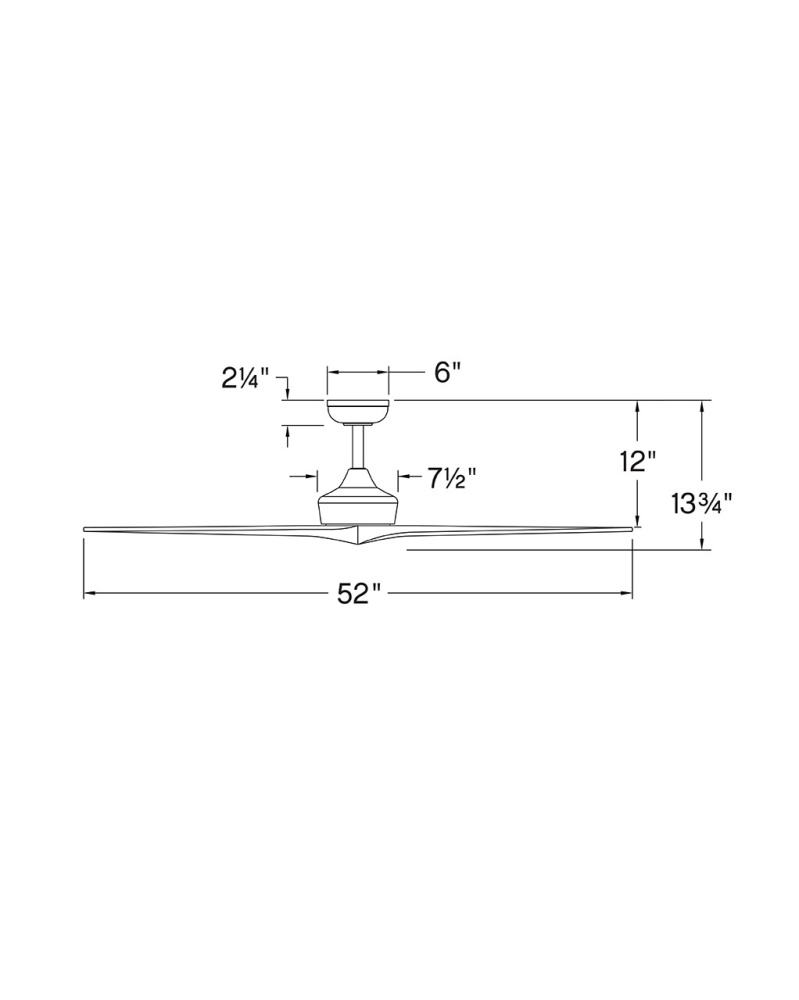

Blade Span:

52

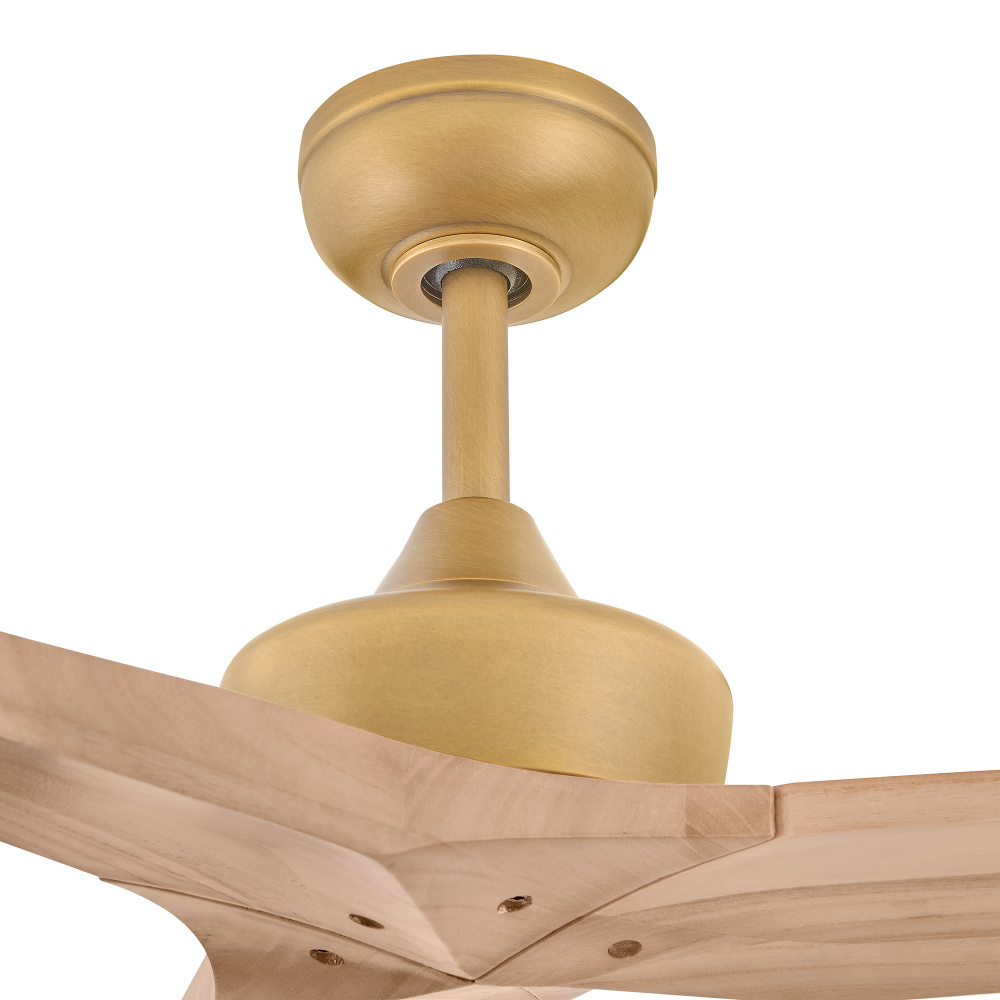

Canopy:

6 Dia x 2.5 D

Introduction Date:

01/01/2026

Light Kit Included:

No

Material:

Steel

Motor Type:

DC

Ship Carton Height:

10.5

Ship Carton Length:

33.5

Ship Carton Width:

16

Ship Weight:

21

Vendor Ship Method:

Parcel

Airflow Avg:

4004

AMPS Avg:

0.29

Avg Airflow Efficiency:

160

Avg Energy Use Watts:

25

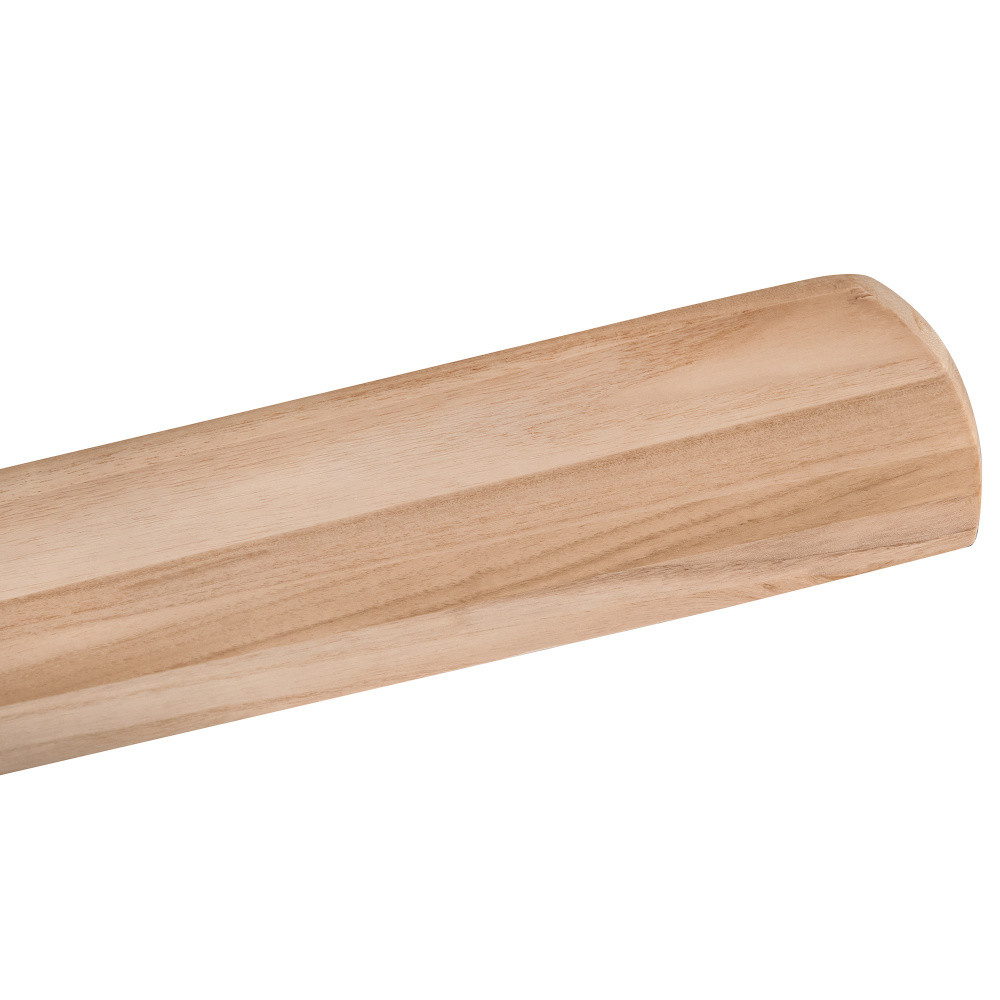

Blade Material:

Wood

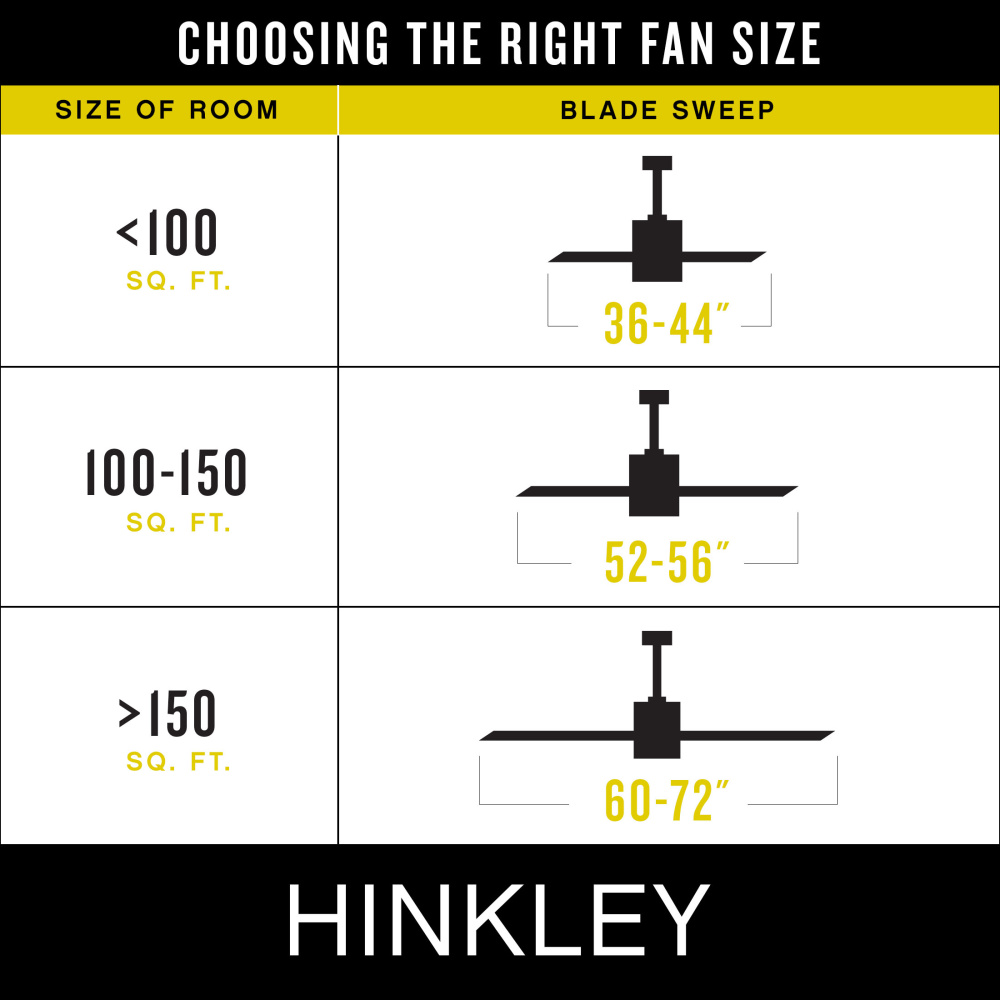

Blade Sweep:

52

Blade To Ceiling Height:

12

Blades Reversible:

No

Bulb Included:

No

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

China,Taiwan

Efficiency High:

166

Energy Cost Avg:

7

Energy Cost High:

11

Energy Use High:

38

Fan Control:

Yes

Flush Mount Fan:

No

Install Sloped Ceiling:

Yes

Light Kit Adaptable:

No

Light Kit Included Removeable:

No

Location Rating:

Damp Rated

Motor Fan Speed:

6

Motor Name:

165 x 25

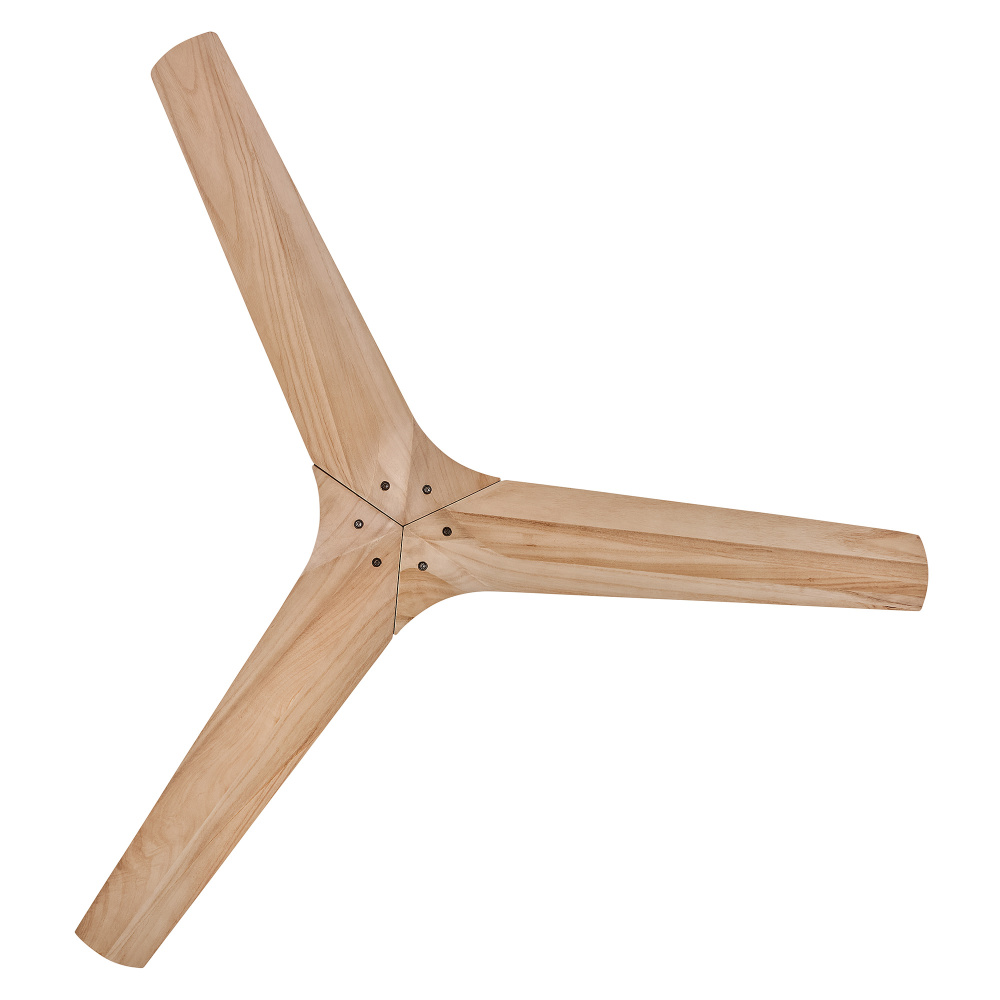

Number of Blades:

3

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

130

RPMS High:

210

Safety Rating:

ETL Approved

Slope Degree:

20

Title 24:

No

Uplight 2:

No

WIFI Control Included:

Yes

Bold silhouette with dramatic details creates a modern statement

Can be hung on a sloped ceiling

Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app

Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms

Fan Control included, 6 Spd HIRO:R

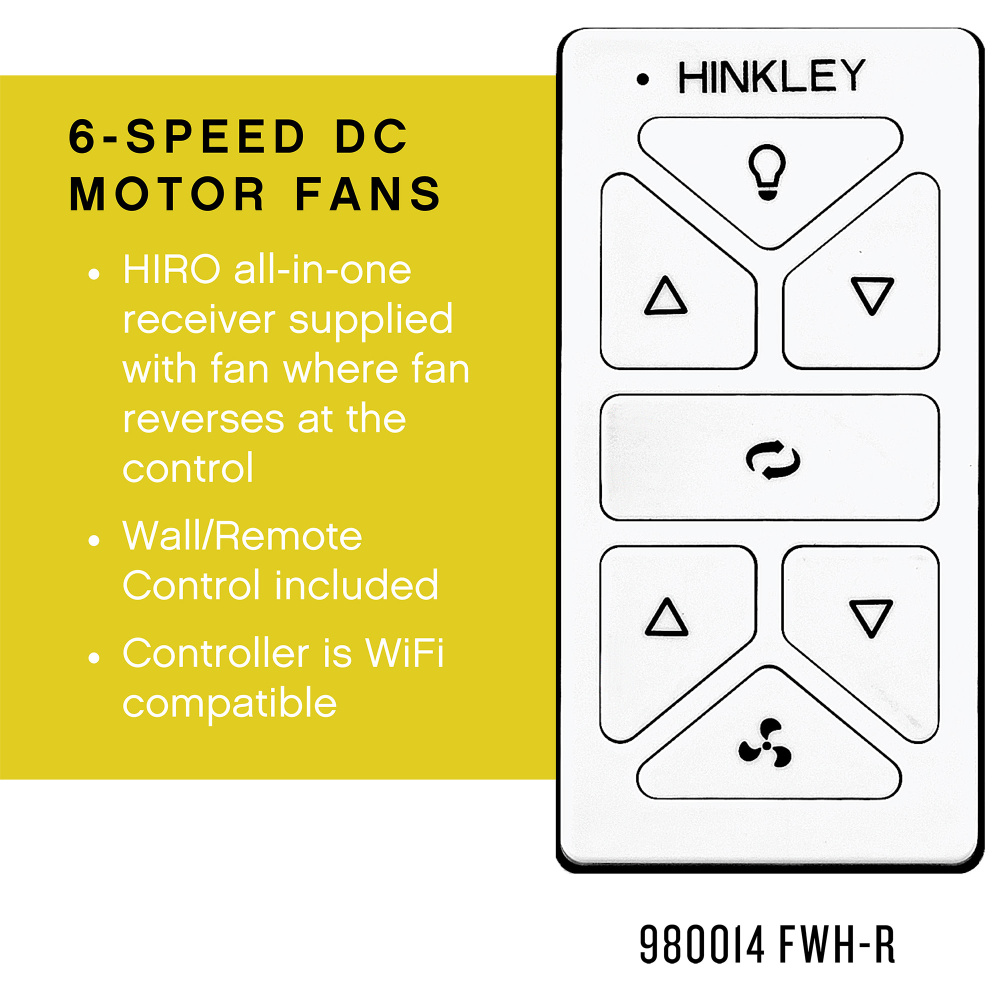

Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote

FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling

Fans should be installed at a minimum of 7 feet from the floor

Motor carries a lifetime warranty

This item includes a 6" down rod (other lengths of down rods are available)

WiFi Enabled Smart Fan is compatible with your home’s WiFi network
